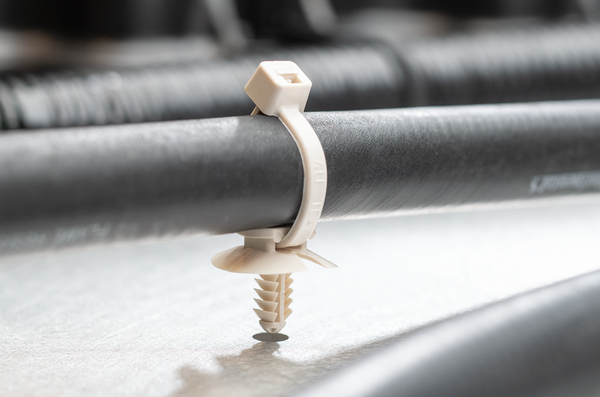

2-Piece Cable Tie with Fir Tree Mount, 5.9"L, 0.24 - 0.26" Mounting Hole, 100lb, PAEK, Beige, 2000/ctn
Part No. 156-04141
|
Copied
- PAEK material provides exceptional heat resistance, withstanding temperatures up to 200° C (392° F).
- Offers outstanding chemical resistance against hydrocarbons.
- PAEK material has double the tensile strength of nylon.
- Friction tab inside fir tree retains tie in mount to aid in installation.
- Disc feature prevents rattling in high-vibration applications and protects against debris ingress.
Show more
Show less
| Color | Beige (BGE), Beige (BGE) |
| Description | HellermannTyton’s fir tree mounts provide a secure grip in a mounting hole. The mount can slide along the cable tie to adjust orientation as needed. Fir tree mounts are designed to provide a low insertion force and high extraction force. This mount is sold as an unassembled set. |
| Global Part Number | PAT100RSDFT6.5SET-PAEK-BGE |
| Part Number | 156-04141 |
| Product Family | Self-Affixing Cable Ties |
| Product Subfamily | Fir Tree Mount Cable Ties |
| Short Description | 2-Piece Cable Tie with Fir Tree Mount, 5.9"L, 0.24 - 0.26" Mounting Hole, 100lb, PAEK, Beige, 2000/ctn |
| Type | PAT100RSDFT6.5SET |
| Bundle Diameter Max. (imperial) | 2.00" |
| Bundle Diameter Max. (metric) | 50.8mm |
| Bundle Diameter Min. (imperial) | 0.06" |
| Bundle Diameter Min. (metric) | 1.5mm |
| Cable Tie Closure | plastic pawl |
| Disc Diameter (imperial) | 0.78" |
| Disc Diameter (metric) | 19.7mm |
| Fixation Method | Fir Tree |
| Height (imperial) | 0.87" |
| Height (metric) | 22.1mm |
| Hole Depth Max. (imperial) | 0.27" |
| Hole Depth Max. (metric) | 6.75mm |
| Hole Depth Min. (imperial) | 0.02" |
| Hole Depth Min. (metric) | 0.6mm |
| Identification Plate Position | none |
| Length (imperial) | 5.9" |
| Length (metric) | 150.5mm |
| Min. Tensile Strength (imperial) | 100lbs |
| Min. Tensile Strength (metric) | 445N |
| Mounting Hole Diameter (imperial) | 0.24 - 0.26 " |
| Mounting Hole Diameter (metric) | 6.1 - 6.7 mm, M8 Threaded |
| Mounting Hole Diameter Max. (imperial) | 0.26" |
| Mounting Hole Diameter Min. (imperial) | 0.24" |
| Mounting Hole Shape | Round |
| Panel Thickness (imperial) | 0.02 - 0.27" |
| Panel Thickness (metric) | 0.6 - 6.75mm |
| Panel Thickness Max. (Imperial) | 0.27" |
| Panel Thickness Max. (Metric) | 6.75mm |
| Panel Thickness Min. (Imperial) | 0.02" |
| Panel Thickness Min. (Metric) | 0.6mm |
| Releasable Closure (Y/N) | No |
| Thickness (imperial) | 0.06" |
| Thickness (metric) | 1.5mm |
| Width (imperial) | 0.16" |
| Width (metric) | 4.0mm |
