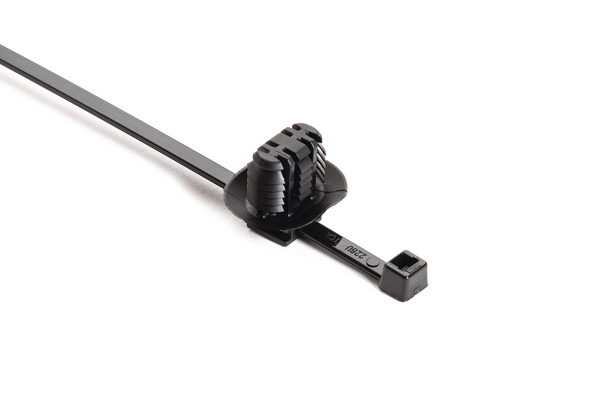

2-Piece Cable Tie with Oval Fir Tree Mount, 9.0x17.0mm, PA66HIRHSUV, Black, 2000/ctn
Art.-No. 156-01642
|
|
Copied
- Friction tab inside the fir tree allows the tie to sit in mount without falling out prior to installation.
- Fir tree provides low insertion effort yet demonstrates high extraction resistance.
- Disc feature prevents rattling in high-vibration applications and protects against debris ingress.
| Color | Black (BK) |
| Description | HellermannTyton’s fir tree mounts provide a secure grip in a mounting hole. The mount can slide along the cable tie to adjust orientation as needed. Fir tree mounts are designed to provide a low insertion force and high extraction force. This mount is sold as an assembly with the cable tie. |
| PART DESCRIPTION | T50RFT9X17A2SET-PA66HIRHSUV-BK |
| Packaging Type | pack |
| Part No. | 156-01642 |
| Product Subfamily | Fir Tree Mount Cable Ties |
| Product family | Self-Affixing Cable Ties |
| Short Description | 2-Piece Cable Tie with Oval Fir Tree Mount, 9.0x17.0mm, PA66HIRHSUV, Black, 2000/ctn |
| Type | T50RFT9X17A2SET |
| UV Resistant | Yes |
| Bundle Diameter Max. (imperial) | 1.97" |
| Bundle Diameter Max. (metric) | 50.0mm |
| Bundle Diameter Min. (imperial) | 0.2" |
| Bundle Diameter Min. (metric) | 5.0mm |
| Cable Tie Closure | plastic pawl |
| Fixation Method | Fir Tree for oval holes |
| Hole Depth Max. (imperial) | 0.22" |
| Hole Depth Max. (metric) | 5.5mm |
| Hole Depth Min. (imperial) | 0.02" |
| Hole Depth Min. (metric) | 0.6mm |
| Identification Plate Position | none |
| Length (imperial) | 1.00" |
| Length (metric) | 25.5mm |
| Min. Tensile Strength (imperial) | 50lbs |
| Min. Tensile Strength (metric) | 225N |
| Mounting Hole Diameter (imperial) | 0.35 x 0.67 " |
| Mounting Hole Diameter (metric) | 9.0 x 17.0 mm |
| Mounting Hole Shape | Oval |
| Panel Thickness (imperial) | 0.02 - 0.22" |
| Panel Thickness (metric) | 0.6 - 5.5mm |
| Panel Thickness Max. (Imperial) | 0.22" |
| Panel Thickness Max. (Metric) | 5.5mm |
| Panel Thickness Min. (Imperial) | 0.02" |
| Panel Thickness Min. (Metric) | 0.6mm |
| Releasable Closure | No |
| Width (imperial) | 0.79" |
| Width (metric) | 20.3mm |
| Affixing Part Material | PA66HIRHSUV |
| BABA compliant | YES |
| CE Certification | No |
| CSA Certified | No |
| Cable Tie Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
| Material | PA66HIRHSUV |
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Operating Temperature, 1000h | +320°F (+160°C) |
| Operating Temperature, 5000h | +257°F (+125°C) |
| Operating Temperature, 500h | +329°F (+165°C) |
| Prop65 Warning | No |
| ROHS compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
