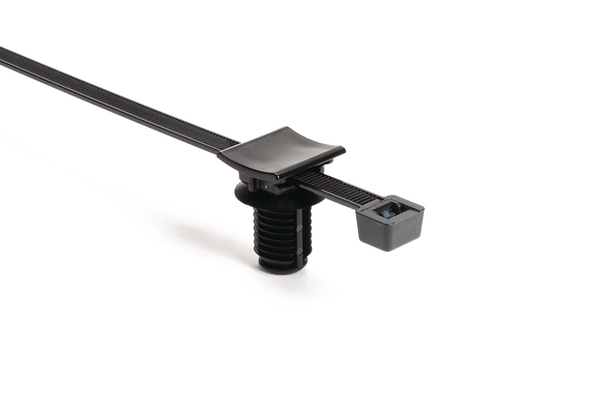

2-Piece Cable Tie with Fir Tree Mount, Unassembled Set, 9"L, 0.47" (12mm) Hole, PA66HIRHS, Black, 1000/ctn
Art.-No. 156-01610
|
|
Copied
- Robust fir tree design provides low insertion effort yet delivers exceptional retention strength in a 12 mm hole, for ease of use and reliable performance.
- Heavy duty T120 tie provides a 120lb (534 N) tensile strength to secure bundles up to 4"" (104 mm).
- Friction tab inside the fir tree allows the tie to sit in mount without falling out prior to installation.
- PA46 nylon material provides great performance at up to 135°F continuous operating temperature.
| Color | Black (BK) |
| Description | These two-piece fasteners offer a simple and versatile method of bundling and mounting cables. Sold as an unassembled set, this oval fir tree and tie combination allows the user to install the tie in two different directions, securing the bundle perpendicular or inline to the oval mounting hole. |
| PART DESCRIPTION | T120SFT12SET-PA66HS/PA66HIRHSUV-BK |
| Packaging Type | pack |
| Part No. | 156-01610 |
| Product Subfamily | Fir Tree Mount Cable Ties |
| Product family | Self-Affixing Cable Ties |
| Short Description | 2-Piece Cable Tie with Fir Tree Mount, Unassembled Set, 9"L, 0.47" (12mm) Hole, PA66HIRHS, Black, 1000/ctn |
| Type | T120SFT12SET |
| UV Resistant | Yes |
| Bundle Diameter Max. (imperial) | 2.17" |
| Bundle Diameter Max. (metric) | 55.0mm |
| Bundle Diameter Min. (imperial) | 0.2" |
| Bundle Diameter Min. (metric) | 5.0mm |
| Cable Tie Closure | plastic pawl |
| Fixation Method | Fir tree for round holes |
| Height (imperial) | 1.17" |
| Height (metric) | 29.70mm |
| Height 2 (imperial) | 0.75" |
| Height 2 (metric) | 19.0mm |
| Hole Depth Max. (imperial) | 0.43" |
| Hole Depth Max. (metric) | 11.0mm |
| Hole Depth Min. (imperial) | 0.02" |
| Hole Depth Min. (metric) | 0.6mm |
| Identification Plate Position | none |
| Length (imperial) | 9.0" |
| Length (metric) | 229.0mm |
| Min. Tensile Strength (imperial) | 120lbs |
| Min. Tensile Strength (metric) | 535N |
| Mounting Hole Diameter (imperial) | 0.46 - 0.49 " |
| Mounting Hole Diameter (metric) | 11.6 - 12.4 mm |
| Mounting Hole Diameter Max. (imperial) | 0.49" |
| Mounting Hole Diameter Min. (imperial) | 0.46" |
| Mounting Hole Shape | Round |
| Panel Thickness (imperial) | 0.02 - 0.43" |
| Panel Thickness (metric) | 0.6 - 11.0mm |
| Panel Thickness Max. (Imperial) | 0.43" |
| Panel Thickness Max. (Metric) | 11.0mm |
| Panel Thickness Min. (Imperial) | 0.02" |
| Panel Thickness Min. (Metric) | 0.6mm |
| Releasable Closure | No |
| Thickness (imperial) | 0.07" |
| Thickness (metric) | 1.8mm |
| Width (imperial) | 0.30" |
| Width (metric) | 7.6mm |
| Width 2 (imperial) | 0.80" |
| Width 2 (metric) | 20.40mm |
| Affixing Part Material | PA66HIRHS |
| BABA compliant | YES |
| CE Certification | No |
| CSA Certified | No |
| Cable Tie Material | Polyamide 6.6 heat stabilized (PA66HS) |
| Flammability | UL 94 HB |
| Material | PA66HS, PA66HIRHSUV |
| Material | Polyamide 6.6 heat stabilized (PA66HS), Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Operating Temperature, 1000h | +320°F (+160°C) |
| Operating Temperature, 5000h | +257°F (+125°C) |
| Operating Temperature, 500h | +329°F (+165°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
