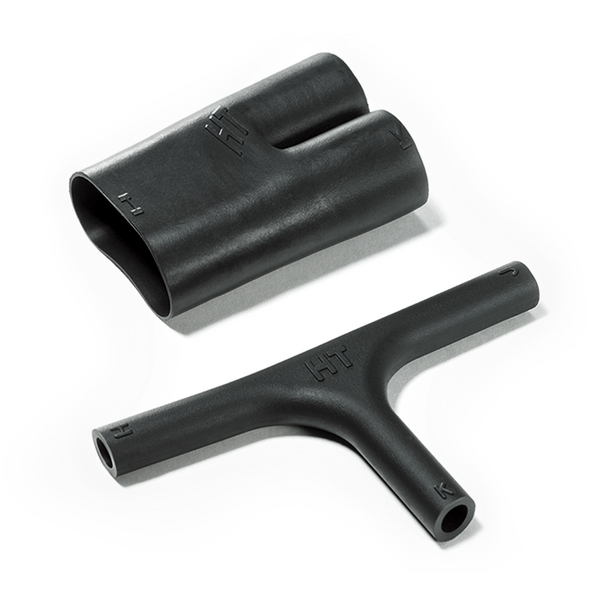

Heat Shrink Molded Shapes, Low Profile Transition T-Boot, 412H624-9, PO-X, BK, 5/bag
Art.-No. 422-40200
|
|
Copied
- Connector cable strain relief
- Used with circular adapter
| Application | Heat Shrinkable Moulded Shapes for use in Electical and Electronic Cable Harness Applications |
| Color | Black (BK) |
| Description | Helashrink 412H series provides connector cable strain relief and is used in conjunction with a circular adapter. |
| Global Part Number | 412H624-9-PO-X-BK |
| Packaging Type | bag |
| Part No. | 422-40200 |
| Product Subfamily | Heat Shrink Shapes - Angles |
| Product family | Heat Shrink Molded Shapes |
| Short Description | Heat Shrink Molded Shapes, Low Profile Transition T-Boot, 412H624-9, PO-X, BK, 5/bag |
| Type | 412H624-9 |
| UV Resistant | No |
|
|
|
| ⌀J/K max. b | 20.0mm |
| ⌀J/K min. a | 40.1mm |
| ⌀J/K/L max. b | 20.0mm |
| ⌀J/K/L min. a | 40.1mm |
| Flexibility | Semi rigid |
| For Object Outside Diameter | 28.02-52.08 mm |
| H Recovered Dia. Max. b (imperial) | 0.78" |
| H Recovered Dia. Max. b (metric) | 20.0mm |
| H Supplied Dia. Min. a (imperial) | 2.34" |
| H Supplied Dia. Min. a (metric) | 60.1mm |
| J Recovered Dia. Max. b (imperial) | .78" |
| J Recovered Dia. Max. b (metric) | 20.0mm |
| J Supplied Dia. Min. a (imperial) | 1.56" |
| J Supplied Dia. Min. a (metric) | 40.1mm |
| K Recovered Dia. Max. b (imperial) | .78" |
| K Recovered Dia. Max. b (metric) | 20.0mm |
| K Recovered Dia. Min. a (imperial) | 1.56" |
| K Recovered Dia. Min. a (metric) | 40.1mm |
| Max. Diameter J/K b | .78" |
| Max. Diameter J/K/L b | .78" |
| Min. Diameter J/K a | 1.56" |
| Min. Diameter J/K/L a | 1.56" |
| P Nominal Pitch b (imperial) | 6.85" |
| P Nominal Pitch b (metric) | 175.7mm |
| P ± 10 % | 175.7mm |
| P ± 10% | 6.85" |
| Shrink Ratio | 3:1 |
| Tube Shape | Angle |
