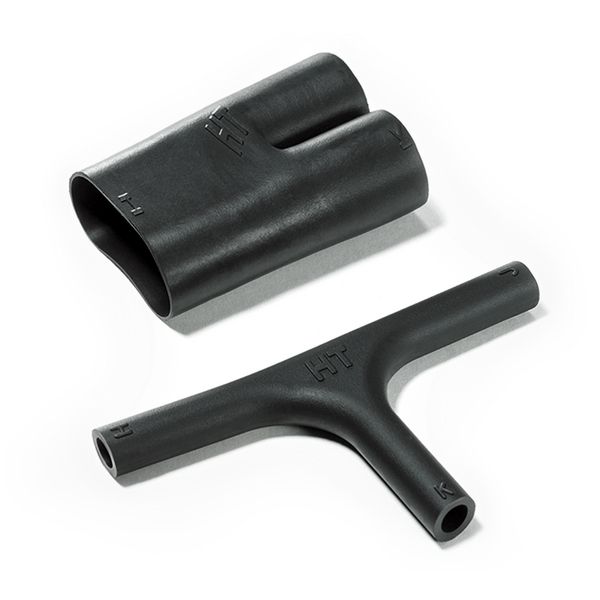

Heat Shrink Molded Shapes, Low Profile Transition T-Boot, 412H623-9, PO-X, BK, 5/bag
Part No. 422-40100
|
Copied
- Connector cable strain relief
- Used with circular adapter
| Brand Family | HELASHRINK |
| Color | Black (BK) |
| Description | Helashrink 412H series provides connector cable strain relief and is used in conjunction with a circular adapter. |
| Global Part Number | 412H623-9-PO-X-BK |
| Part Number | 422-40100 |
| Product Family | Heat Shrink Molded Shapes |
| Product Subfamily | Heat Shrink Shapes - Angles |
| Short Description | Heat Shrink Molded Shapes, Low Profile Transition T-Boot, 412H623-9, PO-X, BK, 5/bag |
| Type | 412H623-9 |
|
|
|
| ⌀J/K max. b | 11.4mm |
| ⌀J/K min. a | 22.8mm |
| ⌀J/K/L max. b | 11.4mm |
| ⌀J/K/L min. a | 22.8mm |
| Flexibility | Semi rigid |
| For Object Outside Diameter | 15.96-29.64 mm |
| H Recovered Dia. Max. b (imperial) | 0.44" |
| H Recovered Dia. Max. b (metric) | 11.4mm |
| H Supplied Dia. Min. a (imperial) | 1.33" |
| H Supplied Dia. Min. a (metric) | 34.2mm |
| J Recovered Dia. Max. b (imperial) | .44" |
| J Recovered Dia. Max. b (metric) | 11.4mm |
| J Supplied Dia. Min. a (imperial) | .89" |
| J Supplied Dia. Min. a (metric) | 22.8mm |
| K Recovered Dia. Max. b (imperial) | .44" |
| K Recovered Dia. Max. b (metric) | 11.4mm |
| K Recovered Dia. Min. a (imperial) | .89" |
| K Recovered Dia. Min. a (metric) | 22.8mm |
| Max. Diameter J/K b | .44" |
| Max. Diameter J/K/L b | .44" |
| Min. Diameter J/K a | .88" |
| Min. Diameter J/K/L a | .89" |
| P Nominal Pitch b (imperial) | 4.69" |
| P Nominal Pitch b (metric) | 12.3mm |
| P ± 10 % | 120.3mm |
| P ± 10% | 4.69" |
| Shrink Ratio | 3:1 |
| Tube Shape | Angle |
| Dielectric Strength (metric) | 20kV/mm |
| Dielectric Strength test method | IEC 243 |
| Flammability | ASTM D635 |
| Hazardous Goods | No |
| Material | PO-X |
| Material | Polyolefin, cross-linked (PO-X) |
| Min. Shrink Temperature | +212 °F (+100 °C) |
| Operating Temperature | -67°F to +248°F (-55°C to +120°C) |
| REACH Conformity | No |
| ROHS Compliant | Yes |
| UV Resistant | No |
