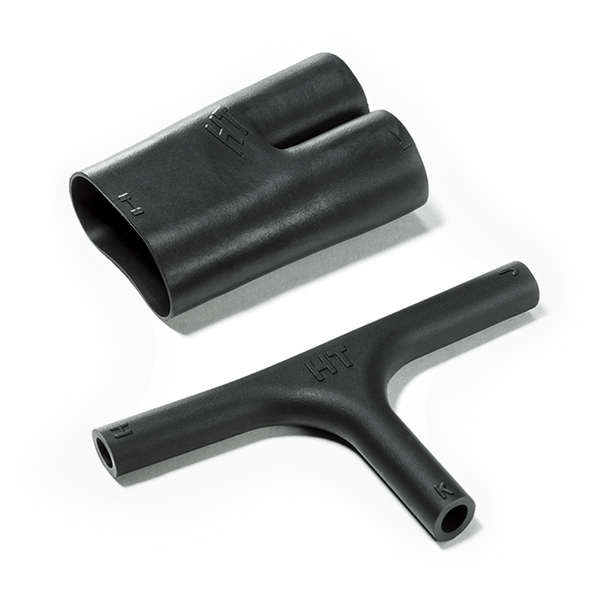

Heat Shrink Molded Shapes, Low Profile Transition T-Boot, 412H622-8, PEEX, BK, 5/bag
Art.-No. 422-40017
|
|
Copied
- Connector cable strain relief
- Used with circular adapter
| Application | Heat Shrinkable Moulded Shapes for use in Electical and Electronic Cable Harness Applications |
| Color | Black (BK) |
| Description | Helashrink 412H series provides connector cable strain relief and is used in conjunction with a circular adapter. |
| PART DESCRIPTION | 412H622-8-PEEX-BK |
| Packaging Type | bag |
| Part No. | 422-40017 |
| Product Subfamily | Heat Shrink Shapes - Angles |
| Product family | Heat Shrink Molded Shapes |
| Short Description | Heat Shrink Molded Shapes, Low Profile Transition T-Boot, 412H622-8, PEEX, BK, 5/bag |
| Type | 412H622-8 |
| UV Resistant | No |
|
|
|
| Flexibility | Semi rigid |
| For Object Outside Diameter | 9.24-17.16 mm |
| H Recovered Dia. Max. b (imperial) | 0.26" |
| H Recovered Dia. Max. b (metric) | 6.6mm |
| H Supplied Dia. Min. a (imperial) | 0.77" |
| H Supplied Dia. Min. a (metric) | 19.8mm |
| J Recovered Dia. Max. b (imperial) | .32" |
| J Recovered Dia. Max. b (metric) | 8.1mm |
| J Supplied Dia. Min. a (imperial) | .69" |
| J Supplied Dia. Min. a (metric) | 17.7mm |
| P Nominal Pitch b (imperial) | 3.15" |
| P Nominal Pitch b (metric) | 8.7mm |
| Shrink Ratio | 3:1 |
| Tube Shape | Angle |
