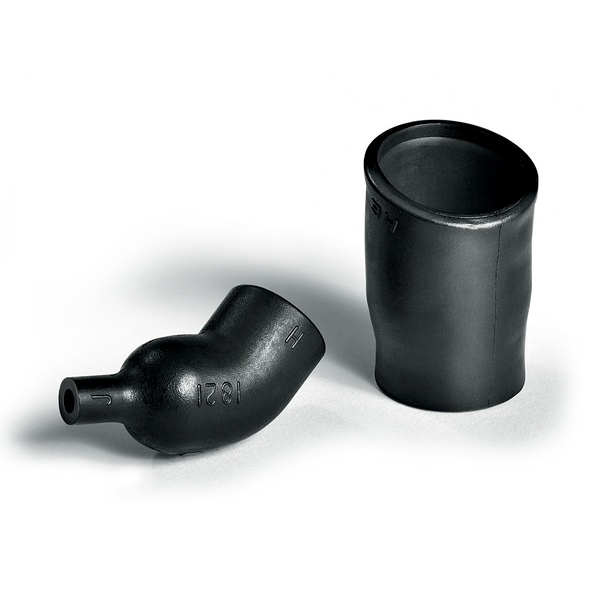

Heat Shrink Molded Shapes, 1800 Series Angle with Rib, 1807-4-G, PO-X, BK, 1/bag
Art.-No. 418-07003
|
|
Copied
- Provides strain relief and mechanical protection for harness systems
- Use in conjunction with a circular grooved adaptor
| Application | Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications. |
| Color | Black (BK) |
| Description | Helashrink 1800 series, with rib, provides strain relief and mechanical protection for harness systems when used in conjunction with a circular grooved adaptor. Can be supplied in a range of nominal recovered angles and material / adhesive combinations to suit most applications. |
| Global Part Number | 1807-4-G-PO-X-BK |
| Packaging Type | bag |
| Part No. | 418-07003 |
| Product Subfamily | Heat Shrink Shapes - Angles |
| Product family | Heat Shrink Molded Shapes |
| Short Description | Heat Shrink Molded Shapes, 1800 Series Angle with Rib, 1807-4-G, PO-X, BK, 1/bag |
| Type | 1807-4-G |
| UV Resistant | No |
|
|
|
| Angle | 60 |
| Flexibility | Semi rigid |
| For Object Outside Diameter | 21.52-32.08 mm |
| H Recovered Dia. Max. b (imperial) | 0.7" |
| H Recovered Dia. Max. b (metric) | 18.0mm |
| H Supplied Dia. Min. a (imperial) | 1.39" |
| H Supplied Dia. Min. a (metric) | 35.6mm |
| HW ± 20 % | 1.8mm |
| HW ± 20% | .07" |
| J Recovered Dia. Max. b (imperial) | .29" |
| J Recovered Dia. Max. b (metric) | 7.4mm |
| J Supplied Dia. Min. a (imperial) | 1.39" |
| J Supplied Dia. Min. a (metric) | 35.6mm |
| JW ± 20 % | 1.8mm |
| JW ± 20% | .07" |
| P ± 10 % | 43.2mm |
| P ± 10% | 1.68" |
| S Nominal Length (imperial) | .12" |
| S Nominal Length (metric) | 3.0mm |
| T ± 20% | .04" |
| Tensile Strength | 15MPa |
| Tube Shape | Angle |
