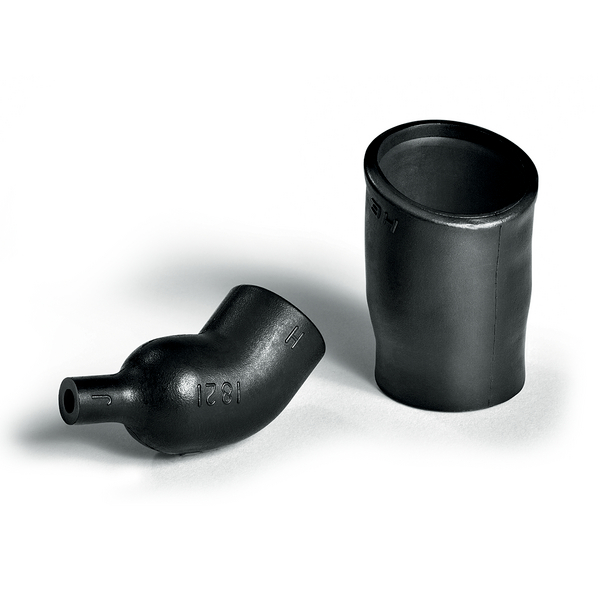

Heat Shrink Molded Shapes, 1800 Series Angle with Rib, 1806-4-G, PO-X, BK, 1/bag
Art.-No. 418-06002
|
|
Copied
- Provides strain relief and mechanical protection for harness systems
- Use in conjunction with a circular grooved adaptor
| Application | Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications. |
| Color | Black (BK) |
| Description | Helashrink 1800 series, with rib, provides strain relief and mechanical protection for harness systems when used in conjunction with a circular grooved adaptor. Can be supplied in a range of nominal recovered angles and material / adhesive combinations to suit most applications. |
| PART DESCRIPTION | 1806-4-G-PO-X-BK |
| Packaging Type | bag |
| Part No. | 418-06002 |
| Product Subfamily | Heat Shrink Shapes - Angles |
| Product family | Heat Shrink Molded Shapes |
| Short Description | Heat Shrink Molded Shapes, 1800 Series Angle with Rib, 1806-4-G, PO-X, BK, 1/bag |
| Type | 1806-4-G |
| UV Resistant | No |
|
|
|
| Angle | 45 |
| Flexibility | Semi rigid |
| For Object Outside Diameter | 30.84-39.66 mm |
| H Recovered Dia. Max. b (imperial) | 1.10" |
| H Recovered Dia. Max. b (metric) | 27.9mm |
| H Supplied Dia. Min. a (imperial) | 1.66" |
| H Supplied Dia. Min. a (metric) | 42.6mm |
| HW ± 20 % | 2.0mm |
| HW ± 20% | .08" |
| J Recovered Dia. Max. b (imperial) | .38" |
| J Recovered Dia. Max. b (metric) | 9.7mm |
| J Supplied Dia. Min. a (imperial) | 1.66" |
| J Supplied Dia. Min. a (metric) | 42.6mm |
| JW ± 20 % | 2.0mm |
| JW ± 20% | .08" |
| P ± 10 % | 85.0mm |
| P ± 10% | 3.32" |
| S Nominal Length (imperial) | .13" |
| S Nominal Length (metric) | 3.3mm |
| T ± 20% | .07" |
| Tensile Strength | 15MPa |
| Tube Shape | Angle |
