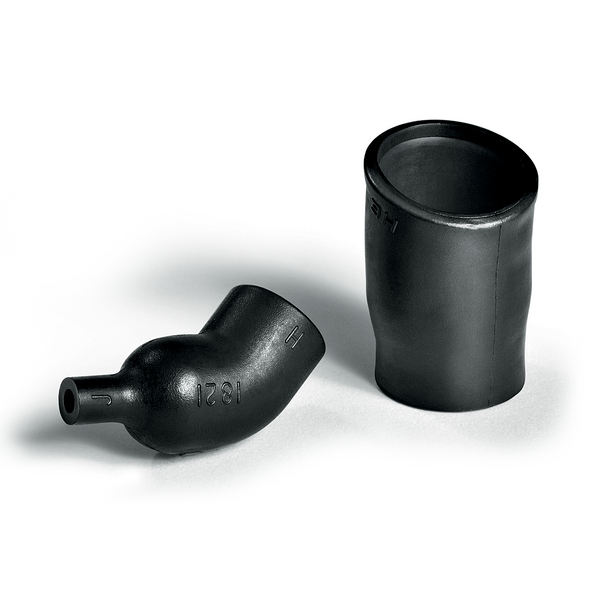

Heat Shrink Molded Shapes, 1800 Series Angle with Rib, 1805-4-G, PO-X, BK, 1/bag
Part No. 418-05003
|
Copied
- Provides strain relief and mechanical protection for harness systems
- Use in conjunction with a circular grooved adaptor
| Brand Family | HELASHRINK |
| Color | Black (BK) |
| Description | Helashrink 1800 series, with rib, provides strain relief and mechanical protection for harness systems when used in conjunction with a circular grooved adaptor. Can be supplied in a range of nominal recovered angles and material / adhesive combinations to suit most applications. |
| Global Part Number | 1805-4-G-PO-X-BK |
| Part Number | 418-05003 |
| Product Family | Heat Shrink Molded Shapes |
| Product Subfamily | Heat Shrink Shapes - Angles |
| Short Description | Heat Shrink Molded Shapes, 1800 Series Angle with Rib, 1805-4-G, PO-X, BK, 1/bag |
| Type | 1805-4-G |
|
|
|
| Angle | 45 |
| Flexibility | Semi rigid |
| For Object Outside Diameter | 23.04-35.76 mm |
| H Recovered Dia. Max. b (imperial) | 0.73" |
| H Recovered Dia. Max. b (metric) | 18.8mm |
| H Supplied Dia. Min. a (imperial) | 1.56" |
| H Supplied Dia. Min. a (metric) | 40.0mm |
| HW ± 20 % | 1.5mm |
| HW ± 20% | .06" |
| J Recovered Dia. Max. b (imperial) | .27" |
| J Recovered Dia. Max. b (metric) | 7.0mm |
| J Supplied Dia. Min. a (imperial) | 1.56" |
| J Supplied Dia. Min. a (metric) | 40.0mm |
| JW ± 20 % | 1.5mm |
| JW ± 20% | 0.06" |
| P ± 10 % | 28.0mm |
| P ± 10% | 1.09" |
| S Nominal Length (imperial) | .04" |
| S Nominal Length (metric) | 3.0mm |
| Tensile Strength | 15MPa |
| Tube Shape | Angle |
