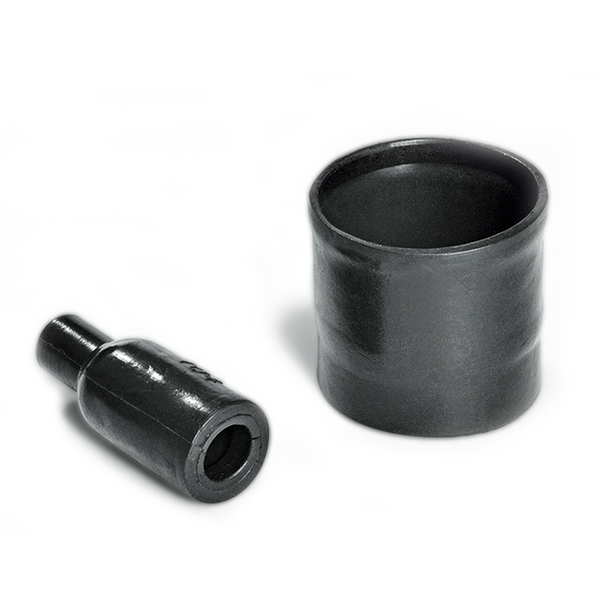

Heat Shrink Molded Shapes, 100 Series Bottle with Rib - MIL, 113-4-G, PO-X, BK, 1/bag
Part No. 401-13480
|
Copied
- With circular grooved adaptor for strain relief
- Combine with complementary adhesives for environmental sealing
| Brand Family | HELASHRINK |
| Color | Black (BK) |
| Description | Helashrink 100 series, with rib, is used in conjunction with a circular grooved adaptor providing strain relief and environmental sealing when used in conjunction with one of HellermannTyton's complementary adhesives. |
| Global Part Number | 113-4-G-PO-X-BK |
| Part Number | 401-13480 |
| Product Family | Heat Shrink Molded Shapes |
| Product Subfamily | Heat Shrink Shapes - Bottle |
| Short Description | Heat Shrink Molded Shapes, 100 Series Bottle with Rib - MIL, 113-4-G, PO-X, BK, 1/bag |
| Type | 113-4-G |
|
|
|
| Flexibility | Semi rigid |
| For Object Outside Diameter | 8.46-10.14 mm |
| H Recovered Dia. Max. b (imperial) | 0.31" |
| H Recovered Dia. Max. b (metric) | 7.9mm |
| H Supplied Dia. Min. a (imperial) | 0.42" |
| H Supplied Dia. Min. a (metric) | 10.7mm |
| HW ± 20 % | 1.3mm |
| HW ± 20% | .05" |
| J Recovered Dia. Max. b (imperial) | .08" |
| J Recovered Dia. Max. b (metric) | 2.0mm |
| J Supplied Dia. Min. a (imperial) | .18" |
| J Supplied Dia. Min. a (metric) | 4.6mm |
| JW ± 20 % | 1.0mm |
| JW ± 20% | 0.04" |
| P ± 10 % | 25.4mm |
| P ± 10% | .99" |
| S Nominal Length (imperial) | .18" |
| S Nominal Length (metric) | 4.6mm |
| T ± 20% | .04" |
| Tensile Strength | 15MPa |
| Tube Shape | Bottle |
| Dielectric Strength (metric) | 14kV/mm |
| Dielectric Strength test method | ASTM D2671 |
| Flammability | ASTM D635 |
| Hazardous Goods | No |
| Material | PO-X |
| Material | Polyolefin, cross-linked (PO-X) |
| Min. Shrink Temperature | +275 °F (+135 °C) |
| Operating Temperature | -103°F to +302°F (-75°C to +150°C) |
| REACH Conformity | No |
| ROHS Compliant | Yes |
| UV Resistant | No |
