Heat Shrink Molded Shapes, 100 Series Bottle with Rib - MIL, 102-4-G, PO-X, BK, 1/bag
Art.-No. 401-02031
|
|
Copied
- With circular grooved adaptor for strain relief
- Combine with complementary adhesives for environmental sealing
| Application | Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications. |
| Color | Black (BK) |
| Description | Helashrink 100 series, with rib, is used in conjunction with a circular grooved adaptor providing strain relief and environmental sealing when used in conjunction with one of HellermannTyton's complementary adhesives. |
| PART DESCRIPTION | 102-4-G-PO-X-BK |
| Packaging Type | bag |
| Part No. | 401-02031 |
| Product Subfamily | Heat Shrink Shapes - Bottle |
| Product family | Heat Shrink Molded Shapes |

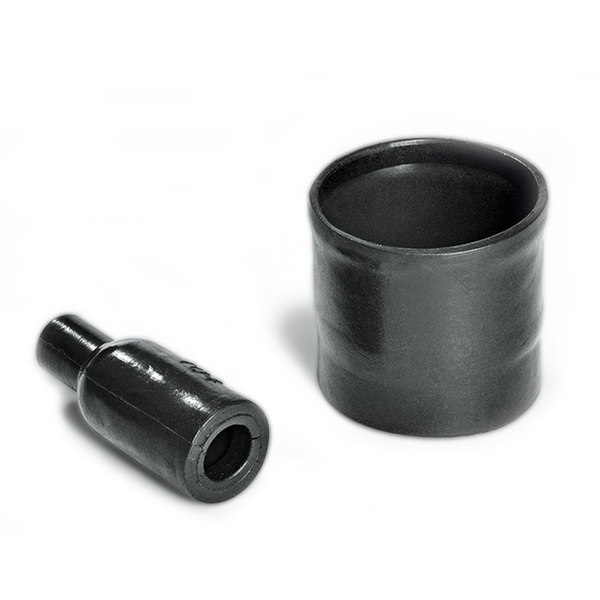

| Short Description | Heat Shrink Molded Shapes, 100 Series Bottle with Rib - MIL, 102-4-G, PO-X, BK, 1/bag |
| Type | 102-4-G |
| UV Resistant | No |
|
|
|
| Flexibility | Semi rigid |
| For Object Outside Diameter | 25.14-33.36 mm |
| H Recovered Dia. Max. b (imperial) | 0.87" |
| H Recovered Dia. Max. b (metric) | 22.4mm |
| H Supplied Dia. Min. a (imperial) | 1.41" |
| H Supplied Dia. Min. a (metric) | 36.1mm |
| HW ± 20 % | 1.8mm |
| HW ± 20% | .07" |
| J Recovered Dia. Max. b (imperial) | .33" |
| J Recovered Dia. Max. b (metric) | 8.4mm |
| J Supplied Dia. Min. a (imperial) | 1.41" |
| J Supplied Dia. Min. a (metric) | 36.1mm |
| JW ± 20 % | 1.8mm |
| JW ± 20% | .07" |
| Max. R | 1.68" |
| P ± 10 % | 73.7mm |
| P ± 10% | 2.87" |
| R max. | 43.2mm |
| S Nominal Length (imperial) | .82" |
| S Nominal Length (metric) | 21.0mm |
| T ± 20% | .04" |
| Tensile Strength | 15MPa |
| Tube Shape | Bottle |
