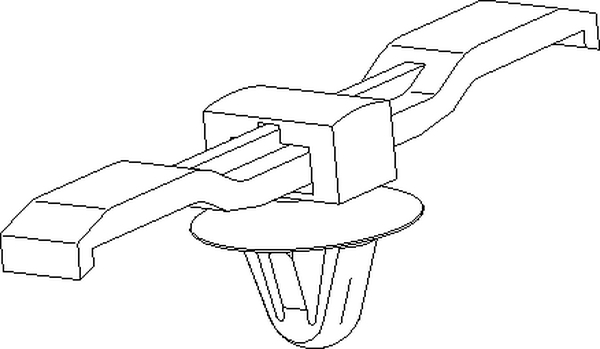

Bundling Clip with Arrowhead, 2.1" Long, 0.02 - 0.05" Panel Thickness, PA66HS, Black, 500/pkg
Part No. 150-08110
|
Copied
- The different fixing orientations allow tape clips to be used with a wide range of panel thicknesses and hole diameters.
| Color | Black (BK) |

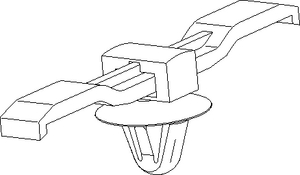

| Description | HellermannTyton Bundling Clips are designed to provide simple and easy methods for securing cable bundles, hoses, or pipes. They are fastened onto the tape bar using tape or cable ties. |
| Global Part Number | CHA1-PA66HS-BK |
| Part Number | 150-08110 |
| Product Family | Bundling Clips |
| Product Subfamily | Arrowhead Clips |
| Short Description | Bundling Clip with Arrowhead, 2.1" Long, 0.02 - 0.05" Panel Thickness, PA66HS, Black, 500/pkg |
| Type | CHA1 |
|
|
|
| Fixation Method | Arrowhead |
| Harness Rotation (Y/N) | NO |
| Height (imperial) | 0.3" |
| Height (metric) | 7.7mm |
| Height 2 (imperial) | 0.32" |
| Height 2 (metric) | 8.2mm |
| Length (imperial) | 2.1" |
| Length (metric) | 54.0mm |
| Mounting Hole Diameter (imperial) | 0.25 - 0.28 " |
| Mounting Hole Diameter (metric) | 6.3 - 7.0 mm |
| Mounting Hole Diameter Max. (imperial) | 0.28" |
| Mounting Hole Diameter Min. (imperial) | 0.25" |
| Mounting Hole Shape | Round |
| Panel Thickness (imperial) | 0.02 - 0.05" |
| Panel Thickness (metric) | 0.5 - 1.2mm |
| Panel Thickness Max. (Imperial) | 0.05" |
| Panel Thickness Max. (Metric) | 1.2mm |
| Panel Thickness Min. (Imperial) | 0.02" |
| Panel Thickness Min. (Metric) | 0.5mm |
| Tape Bar Length (imperial) | 2.13" |
| Tape Bar Length (metric) | 54.0mm |
| Width (imperial) | 0.24" |
| Width (metric) | 6.0mm |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 V-2 |
| Hazardous Goods | No |
| Material | PA66HS |
| Material | Polyamide 6.6 heat stabilized (PA66HS) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS Compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
| UV Resistant | No |
