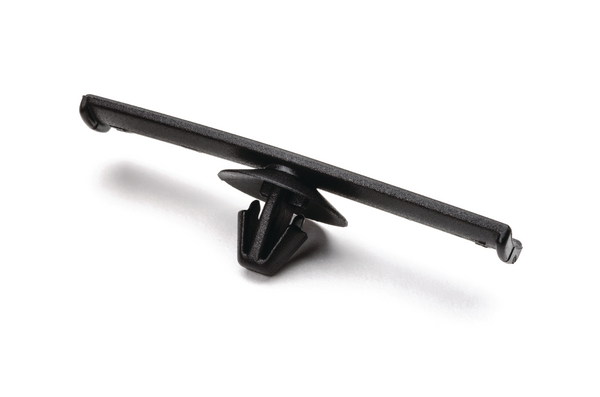

Bundling Clip with Arrowhead, 2.17" Long, 0.06" - 0.12" Panel Thickness, PA66HIRHS, Black, 500/pkg
Part No. 155-11601
|
Copied
- The different fixing orientations allow tape clips to be used with a wide range of panel thicknesses and hole diameters.
| Brand Family | BC-Series |
| Color | Black (BK) |
| Description | HellermannTyton Bundling Clips are designed to provide simple and easy methods for securing cable bundles, hoses, or pipes. They are fastened onto the tape bar using tape or cable ties. |
| Global Part Number | BCSFT6.5 16-3MD-PA66HIRHS-BK |
| Part Number | 155-11601 |
| Product Family | Self-Affixing Clips |
| Product Subfamily | Bundling Clips |
| Short Description | Bundling Clip with Arrowhead, 2.17" Long, 0.06" - 0.12" Panel Thickness, PA66HIRHS, Black, 500/pkg |
| Type | BCSFT6.5 16-3MD |
| Disc Diameter (imperial) | 0.63" |
| Disc Diameter (metric) | 16.0mm |
| Fixation Method | Arrowhead |
| Harness Rotation (Y/N) | NO |
| Height (imperial) | 0.55" |
| Height (metric) | 14.0mm |
| Length (imperial) | 2.17" |
| Length (metric) | 55.0mm |
| Mounting Hole Diameter (imperial) | 0.25 - 0.26 " |
| Mounting Hole Diameter (metric) | 6.3 - 6.7 mm |
| Mounting Hole Diameter Max. (imperial) | 0.26" |
| Mounting Hole Diameter Min. (imperial) | 0.25" |
| Mounting Hole Shape | Circular |
| Panel Thickness (imperial) | 0.06 - 0.12" |
| Panel Thickness (metric) | 1.5 - 3.0mm |
| Panel Thickness Max. (Imperial) | 0.12" |
| Panel Thickness Max. (Metric) | 3.0mm |
| Panel Thickness Min. (Imperial) | 0.06" |
| Panel Thickness Min. (Metric) | 1.5mm |
| Tape Bar Length (imperial) | 2.17" |
| Tape Bar Length (metric) | 55.0mm |
| Width (imperial) | 0.32" |
| Width (metric) | 8.0mm |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Hazardous Goods | No |
| Material | PA66HIRHS |
| Material | Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS Compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
| UV Resistant | No |
