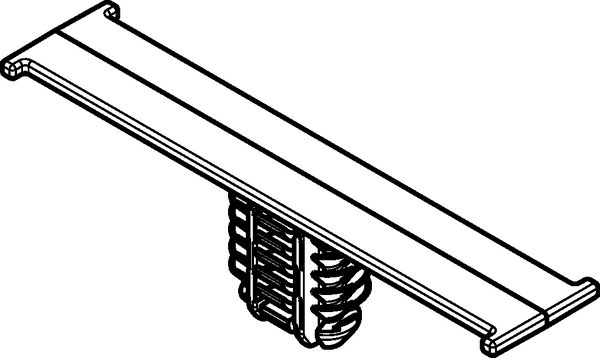

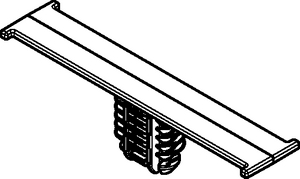

Bundling Clip with Oval Fir Tree, 2.28" L, 0.02 - 0.24" Panel Thickness, PA66HIRHSUV, Black, 8000/ctn
Part No. 151-01403
|
Copied
- The different fixing orientations allow tape clips to be used with a wide range of panel thicknesses and hole diameters.
| Color | Black (BK) |
| Description | HellermannTyton Bundling Clips are designed to provide simple and easy methods for securing cable bundles, hoses, or pipes. They are fastened onto the tape bar using tape or cable ties. |
| Global Part Number | BCFTOVAL-PA66HIRHSUV-BK |
| Part Number | 151-01403 |
| Product Family | Self-Affixing Clips |
| Product Subfamily | Bundling Clips |
| Short Description | Bundling Clip with Oval Fir Tree, 2.28" L, 0.02 - 0.24" Panel Thickness, PA66HIRHSUV, Black, 8000/ctn |
| Type | BCFTOVAL |
| Fixation Method | Fir Tree for oval holes |
| Height (imperial) | 0.60" |
| Height (metric) | 15.45mm |
| Height 2 (imperial) | 0.55" |
| Height 2 (metric) | 13.95mm |
| Hole Depth Max. (imperial) | 0.24" |
| Hole Depth Max. (metric) | 6.0mm |
| Hole Depth Min. (imperial) | 0.02" |
| Hole Depth Min. (metric) | 0.5mm |
| Length (imperial) | 2.28" |
| Length (metric) | 58.0mm |
| Mounting Hole Diameter (imperial) | 0.24 x 0.48 ", 0.25 x 0.50 ", 0.27 x 0.47 " |
| Mounting Hole Diameter (metric) | 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm |
| Mounting Hole Diameter Max. (imperial) | 0.50" |
| Mounting Hole Diameter Min. (imperial) | 0.24" |
| Mounting Hole Shape | Oval |
| Panel Thickness (imperial) | 0.02 - 0.24" |
| Panel Thickness (metric) | 0.5 - 6.0mm |
| Panel Thickness Max. (Imperial) | 0.24" |
| Panel Thickness Max. (Metric) | 6.0mm |
| Panel Thickness Min. (Imperial) | 0.02" |
| Panel Thickness Min. (Metric) | 0.5mm |
| Tape Bar Length (imperial) | 2.28" |
| Tape Bar Length (metric) | 58.0mm |
| BABA compliant | YES |
| CE Certification | No |
| CSA Certified | No |
| Hazardous Goods | No |
| Material | PA66HIRHSUV |
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Operating Temperature, 1000h | +320°F (+160°C) |
| Operating Temperature, 5000h | +257°F (+125°C) |
| Operating Temperature, 500h | +329°F (+165°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS Compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
| UV Resistant | Yes |
