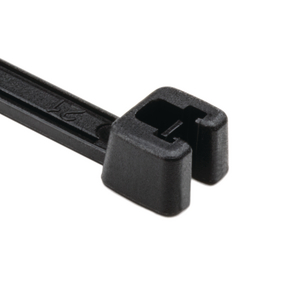

Q Tie, 9.8" Long, 30lb Tensile Strength, PA66HS, Black, 100/pkg
Art.-No. 109-00101
| Q30LR-PA66HS-BK
|
Copied
This product is not available anymore.
- PA66HS cable ties are heat stabilized for excellent heat resistance.
- Open-head design with easily detectable slot opening allows for fast and easy insertion.
- Pre-lock feature allows for a temporary hold while preparing bundle.
- Large ribbed tail ensures simple, ergonomic installation.
| Color | Black (BK) |
| Description | Q-Ties have a distinctive open-style head, a pre-lock function, and a large ribbed tail. The easily detectable slot opening offered with the tail and tie head provides ease of placement when working with gloves or for blind applications with limited view of the installation. The pre-lock feature allows for temporary holding of cable and wire bundles, permitting additional cables and wires to be placed without destroying the cable tie. Q-Ties can be tensioned by hand or with one of HellermannTyton’s mechanical cable tie application tools. |
| PART DESCRIPTION | Q30LR-PA66HS-BK |
| Packaging Type | bag |
| Part No. | 109-00101 |
| Product Subfamily | Inside Serrated Cable Ties |
| Product family | Cable Ties |
| Short Desc. | Q Tie, 9.8" Long, 30lb Tensile Strength, PA66HS, Black, 100/pkg |
| Type | Q30LR |
|
|
|
| Cable Tie Closure | plastic pawl |
| Identification Plate Position | none |
| Length (imperial) | 9.84" |
| Length (metric) | 250mm |
| Max. Bundle Diameter (imperial) | 2.6" |
| Max. Bundle Diameter (metric) | 65.0mm |
| Min. Bundle Diameter (imperial) | 0.06" |
| Min. Bundle Diameter (metric) | 3.0mm |
| Min. Tensile Strength (imperial) | 30lbs |
| Min. Tensile Strength (metric) | 130N |
| Releasable Closure | No |
| Thickness (imperial) | 0.05" |
| Thickness (metric) | 1.3mm |
| Width (imperial) | 0.14" |
| Width (metric) | 3.6mm |
