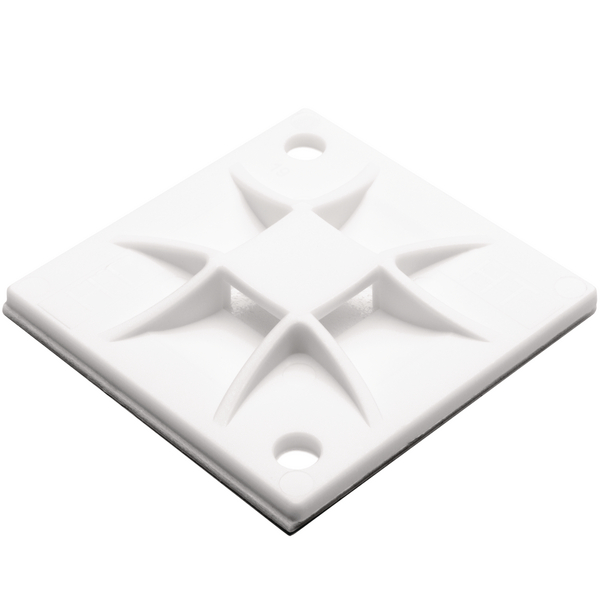

Q Tie Mount with Adhesive, 1.6 x 1.6 x 0.26", 4 way entry for Q18 thru Q120 ties, PA66, White, 50/pkg
Art.-No. 151-10906
|
|
Copied
- 2- or 4-way entry options for the Q Tie, offering flexibility and stability
| Application | Q-mounts are ideally suited for holding cable ties in place. They would perfectly fit to all applications where a reliable and durable fixation is required. Self adhesive versions of our Q-Mounts are suitable for applications where using screws, nuts, bolts or drilling holes to fix cables is problematic, or not the first choice. |
| Color | Natural (NA) |

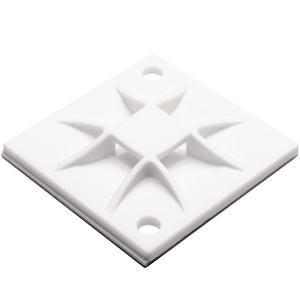

| Description | Q Mounts are designed to work exclusively with the Q Tie cable tie series. This mounting component is available with adhesive or can be secured with screws. The Q Mount allows either a 2- or 4-way entry for the Q Tie, providing a quick and simple insertion into the mount. Once in place, the Q Tie will not slip out, even in vertical mounting applications. |
| Global Part Number | QM40A-PA66-NA |
| Packaging Type | pack |
| Part No. | 151-10906 |
| Product Subfamily | Adhesive Q Tie Mounting Bases |
| Product family | Cable Tie Mounts |
| Short Description | Q Tie Mount with Adhesive, 1.6 x 1.6 x 0.26", 4 way entry for Q18 thru Q120 ties, PA66, White, 50/pkg |
| Type | QM40A |
| UV Resistant | No |
|
|
|
| Fixation Method | Adhesive |
| Height (imperial) | 0.26" |
| Height (metric) | 5.5mm |
| Length (imperial) | 1.6" |
| Length (metric) | 40.0mm |
| Max. Cable Tie Width (imperial) | 0.31" |
| Max. Cable Tie Width (metric) | 8.4mm |
| Mounting Hole Centers (imperial) | 1.19" |
| Mounting Hole Centers (metric) | 30.0mm |
| Mounting Hole Diameter (imperial) | 0.16 " |
| Mounting Hole Diameter (metric) | 4.1 mm |
| Width (imperial) | 1.6" |
| Width (metric) | 40.0mm |
| Adhesive | Synthetic rubber with base of polyethylene foam |
| Adhesive Operating Temperature | -40°F to +140°F (-40°C to +60°C) |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 V-2 (excluding adhesive) |
| Halogen Free | Yes |
| Material | PA66 |
| Material | Polyamide 6.6 (PA66) |
| Operating Temperature | -40°F to +140°F (-40°C to +60°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS Compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
