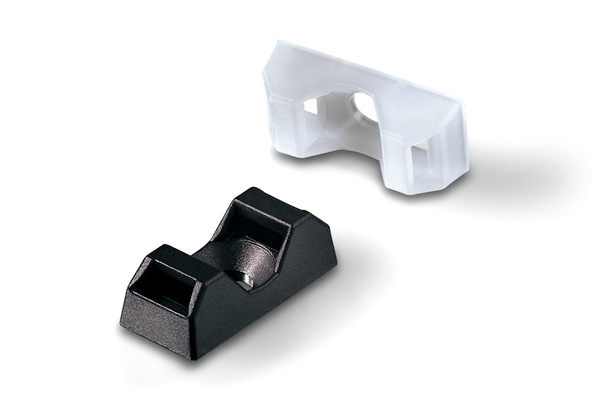

Q Tie Mount, M4 Screw, 0.83 x 0.38 x 0.26", For Q18 - Q50 ties, PA66, Black, 100/bg
Art.-No. 151-10930
|
|
Copied
- 2- or 4-way entry options for the Q-Tie, offering flexibility and stability
- Designed for use with 18- through 120-pound cable ties to provide stability when securing bundles.
- Secures with a single screw, providing quick installation.
| Application | CTQM mounts are the ideal choice for applications that require reliable, permanent mounting - especially in confined or space-restricted environments. |
| Color | Black (BK) |
| Description | Q-Series mounting bases are designed to work exclusively with the Q-Tie® cable tie series. This mounting component can be secured with screws. The Q-Mount allows either a two- or four-way entry for the Q-Tie, providing a quick and simple insertion into the mount. Once in place, the Q-Tie will not slip out, even in vertical mounting applications. |
| Global Part Number | CTQM5-PA66-BK |
| Packaging Type | pack |
| Part No. | 151-10930 |
| Product Subfamily | Screw Mount Cable Tie Bases |
| Product family | Cable Tie Mounts |
| Short Description | Q Tie Mount, M4 Screw, 0.83 x 0.38 x 0.26", For Q18 - Q50 ties, PA66, Black, 100/bg |
| Type | CTQM5 |
| UV Resistant | No |
| Fixation Method | Screw Mount |
| For Cable Tie Series | Q-Ties |
| Height (imperial) | 0.26" |
| Height (metric) | 6.7mm |
| Length (imperial) | 0.83" |
| Length (metric) | 21.0mm |
| Max. Cable Tie Width (imperial) | 0.2" |
| Max. Cable Tie Width (metric) | 5.0mm |
| Mounting Hole Diameter (imperial) | 0.175 " |
| Mounting Hole Diameter (metric) | 4.5 mm |
| Mounting Hole Shape | Round |
| Mounting Screw Type | M4 Screw |
| Width (imperial) | 0.38" |
| Width (metric) | 9.5mm |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 V-2 |
| Halogen Free | Yes |
| Material | PA66 |
| Material | Polyamide 6.6 (PA66) |
| Operating Temperature | -40°F to +185°F (-40°C to +85°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS Compliant | Yes |
| UL File Number [Logo] | E65344 [cRUus] |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | Yes |
| UL Recognized (US) | Yes |
