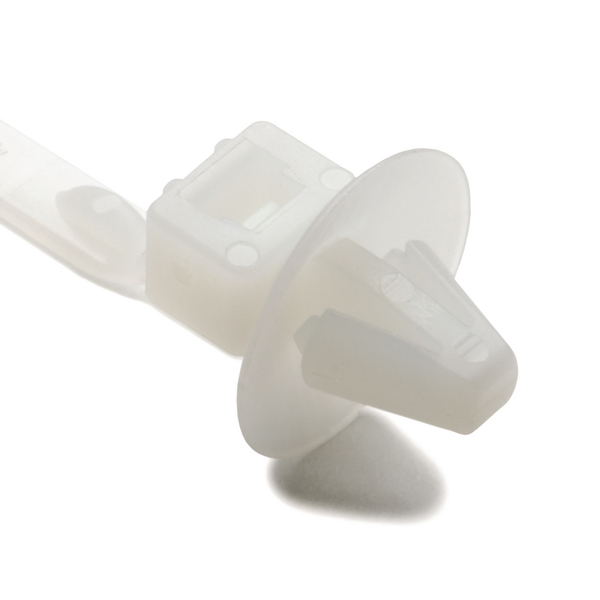

1-Piece Cable Tie with Arrowhead Mount, 7.0"L, 50lb Tensile, PA66HIRHS, Natural, 1000/pkg
Art.-No. 126-02300
|
|
Copied
- An all-in-one bundling and fixing solution reduces costs.
- Disc provides secure insertion and minimizes access of dust, dirt and water.
| Application | With a diverse range of mounting possibilities this range of ties are ideal for use in many different industries: automotive, aerospace, white goods manufacture and panel building. |
| Color | Natural (NA) |
| Description | The Domed Push Mount Tie provides a tight, rattle-free installation and acts as a seal to kieep out dust and debris. One-piece mounting ties offer a complete solution by both bundling cable and at the same time providing a mounting solution. |
| Global Part Number | T50SST5-PA66-NA |
| Packaging Type | pack |
| Part No. | 126-02300 |
| Product Subfamily | Arrowhead Mount Cable Ties |
| Product family | Self-Affixing Cable Ties |
| Short Description | 1-Piece Cable Tie with Arrowhead Mount, 7.0"L, 50lb Tensile, PA66HIRHS, Natural, 1000/pkg |
| Type | T50SST5 |
| UV Resistant | No |
|
|
|
| Bundle Diameter Max. (imperial) | 1.22" |
| Bundle Diameter Max. (metric) | 31.0mm |
| Bundle Diameter Min. (imperial) | 0.06" |
| Bundle Diameter Min. (metric) | 1.5mm |
| Cable Tie Closure | plastic pawl |
| Disc Diameter (imperial) | 0.64" |
| Disc Diameter (metric) | 16.2mm |
| Fir Tree Length (metric) | 8.0mm |
| Fixation Method | Arrowhead |
| Harness Rotation (Y/N) | NO |
| Height (imperial) | 0.4" |
| Identification Plate Position | none |
| Length (imperial) | 7.0" |
| Length (metric) | 170.0mm |
| Min. Tensile Strength (imperial) | 50lbs |
| Min. Tensile Strength (metric) | 225N |
| Mounting Hole Diameter (imperial) | 0.24 - 0.26 " |
| Mounting Hole Diameter (metric) | 6.1 - 6.5 mm |
| Mounting Hole Diameter Max. (imperial) | 0.26" |
| Mounting Hole Diameter Min. (imperial) | 0.24" |
| Mounting Hole Shape | Round |
| Panel Thickness (imperial) | 0.03 - 0.06" |
| Panel Thickness (metric) | 0.7 - 1.5mm |
| Panel Thickness Max. (Imperial) | 0.06" |
| Panel Thickness Max. (Metric) | 1.5mm |
| Panel Thickness Min. (Imperial) | 0.03" |
| Panel Thickness Min. (Metric) | 0.7mm |
| Releasable Closure | No |
| Thickness (imperial) | 0.05" |
| Thickness (metric) | 1.2mm |
| Width (imperial) | 0.18" |
| Width (metric) | 4.6mm |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 V-2 |
| Material | PA66 |
| Material | Polyamide 6.6 (PA66) |
| Operating Temperature | -40°F to +185°F (-40°C to +85°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS Compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
