1-Piece Cable Tie with Arrowhead Mount, 6"L, 50lb Tensile Strength, 5.4mm Round Hole, PA66HS, Black, 500/pkg
Part No. 126-00075
|
Copied
- All-in-one bundling and mounting solution reduces costs.
- Low-profile design provides dependable cable management in tight spaces.
| Brand Family | SFT-Series |
| Color | Black (BK) |

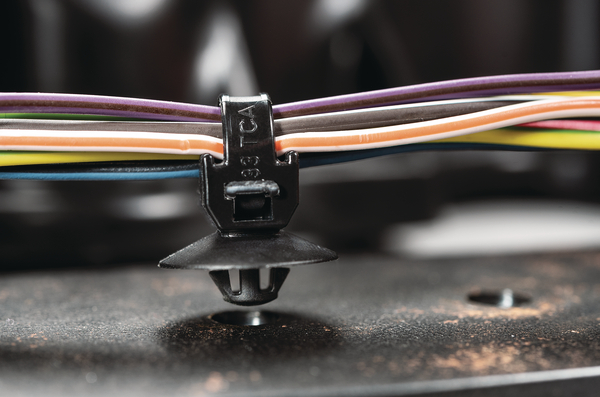

| Description | The low-profile push mount design provides an overall shortened length, which assists in limiting protrusion on the opposing side of application surfaces. The mount’s rounded tip allows for a smoother surface in case of contact with surrounding components or hands. The dome provides firm, rattle-free performance and keeps out debris. One-piece mounting ties offer a complete solution by both bundling and mounting. |
| Global Part Number | T50SOSKSFT5.4E-PA66HS-BK |
| Part Number | 126-00075 |
| Product Family | Self-Affixing Cable Ties |
| Product Subfamily | Arrowhead Mount Cable Ties |
| Short Description | 1-Piece Cable Tie with Arrowhead Mount, 6"L, 50lb Tensile Strength, 5.4mm Round Hole, PA66HS, Black, 500/pkg |
| Type | T50SOSKSFT5.4E |
| Bundle Diameter Max. (imperial) | 1.3779527544999999" |
| Bundle Diameter Max. (metric) | 35.0mm |
| Bundle Diameter Min. (imperial) | 0.04" |
| Bundle Diameter Min. (metric) | 1.0mm |
| Cable Tie Closure | plastic pawl |
| Disc Diameter (imperial) | 0.63" |
| Disc Diameter (metric) | 16.0mm |
| Fixation Method | Arrowhead |
| Identification Plate Position | none |
| Length (imperial) | 6.0" |
| Length (metric) | 156.0mm |
| Min. Tensile Strength (imperial) | 50lbs |
| Min. Tensile Strength (metric) | 180N |
| Mounting Hole Diameter (imperial) | 0.20 - 0.22 " |
| Mounting Hole Diameter (metric) | 5.2 - 5.6 mm |
| Mounting Hole Diameter Max. (imperial) | 0.22" |
| Mounting Hole Diameter Min. (imperial) | 0.20" |
| Mounting Hole Shape | Round |
| Panel Thickness (imperial) | 0.03 - 0.05" |
| Panel Thickness (metric) | 0.7 - 1.3mm |
| Panel Thickness Max. (Imperial) | 0.05" |
| Panel Thickness Max. (Metric) | 1.3mm |
| Panel Thickness Min. (Imperial) | 0.03" |
| Panel Thickness Min. (Metric) | 0.7mm |
| Releasable Closure (Y/N) | No |
| Width (imperial) | 0.18" |
| Width (metric) | 4.6mm |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 V-2 |
| Hazardous Goods | No |
| Material | PA66HS |
| Material | Polyamide 6.6 heat stabilized (PA66HS) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS Compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
| UV Resistant | No |
