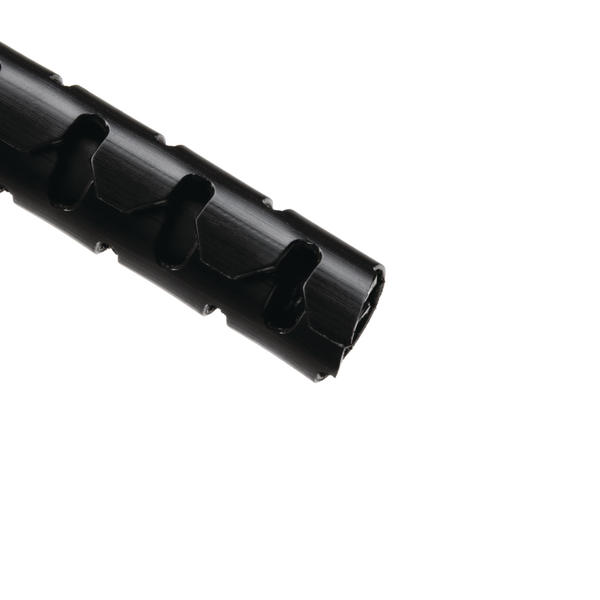

Helawrap, HWPP08, 5/16" (8mm) Dia, PP, Black, 100 ft/reel
Art.-No. 161-64112
|
|
Copied
- Unique open design for easy branch-offs at any point along the harness.
- Overwrap formation provides abrasion protection and accommodates multiple bundle configurations.
- Flexible construction and design eliminates pinch points and minimizes bending fatigue, making it ideal for applications involving movement and vibration.
- Split shape allows for future access without disassembly.
| Application | Helawrap is used to bundle and protect cables and wires in the electrical industry, panel building, machine building and many other industrial applications. Helawrap is the time-saving solution for industrial applications. |
| Color | Black (BK) |
| Description | The Helawrap cable management system is the flexible routing and protection solution for industrial, datacom and electrical applications. Helawrap easily wraps around cables with a "zipper-like" motion to protect against abrasion and mechanical stress caused by movement and bending. A handy application tool is included in every package for faster installations. |
| PART DESCRIPTION | HWPP8-PP-BK |
| Packaging Type | pack |
| Part No. | 161-64112 |
| Product Subfamily | Helawrap - General Purpose |
| Product family | Helawrap Protective Tubing |
| Short Description | Helawrap, HWPP08, 5/16" (8mm) Dia, PP, Black, 100 ft/reel |
| Type | HWPP8 |
| UV Resistant | No |
|
|
|
| Bundle Diameter Max. (imperial) | 0.36" |
| Bundle Diameter Max. (metric) | 9.14mm |
| Bundle Diameter Min. (imperial) | 0.31" |
| Bundle Diameter Min. (metric) | 7.87mm |
| Diameter (imperial) | 0.25" |
| Diameter (metric) | 8.0mm |
| Length (imperial) | 100.0ft |
| Length (metric) | 30.48m |
| Nominal Diameter (imperial) | 0.31" |
| Nominal Diameter (metric) | 8.0mm |
| Pitch (imperial) | 0.39" |
| Pitch (metric) | 10.0mm |
| Reel Length (imperial) | 100.0ft |
| Trade Size | 5/16 " |
| Wall Thickness (imperial) | 0.0295" |
| Wall Thickness (metric) | 0.75mm |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Halogen Free | Yes |
| Material | PP |
| Material | Polypropylene (PP) |
| Melting Point | +284 °F (+140 °C) |
| Operating Temperature | -76°F to +230°F (-60°C to +110°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
