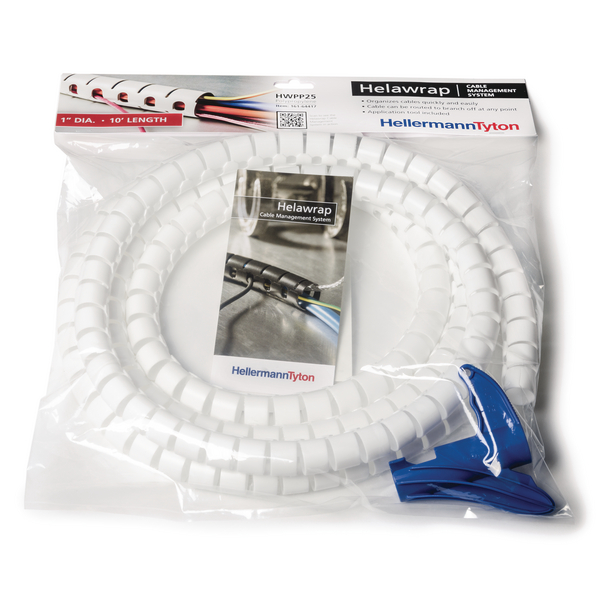

Helawrap, HWPP25, Convenience Pack, 1" (25mm) Dia, PP, White, 10ft/pkg
Part No. 161-64417
|
Copied
- Unique open design for easy branch-offs at any point along the harness.
- Overwrap formation provides abrasion protection and accommodates multiple bundle configurations.
- Flexible construction and design eliminates pinch points and minimizes bending fatigue, making it ideal for applications involving movement and vibration.
- Split shape allows for future access without disassembly.
| Brand Family | Helawrap |
| Color | White (WH) |
| Description | The Helawrap cable management system is the flexible routing and protection solution for industrial, datacom and electrical applications. Helawrap easily wraps around cables with a "zipper-like" motion to protect against abrasion and mechanical stress caused by movement and bending. A handy application tool is included in every package for faster installations. |
| Global Part Number | HWPP25-PP-WH |
| Part Number | 161-64417 |
| Product Family | Helawrap Protective Tubing |
| Product Subfamily | Helawrap - General Purpose |
| Short Description | Helawrap, HWPP25, Convenience Pack, 1" (25mm) Dia, PP, White, 10ft/pkg |
| Type | HWPP25 |
|
|
|
| Bundle Diameter (imperial) | 0.91-1.06" |
| Bundle Diameter (metric) | 23.11-26.92mm |
| Bundle Diameter Max. (imperial) | 1.06" |
| Bundle Diameter Max. (metric) | 26.92mm |
| Bundle Diameter Min. (imperial) | 0.91" |
| Bundle Diameter Min. (metric) | 23.11mm |
| Diameter (imperial) | 1.0" |
| Diameter (metric) | 25.40mm |
| Length (imperial) | 10.0ft |
| Length (metric) | 3.05m |
| Nominal Diameter (imperial) | 1" |
| Nominal Diameter (metric) | 25.0mm |
| Pitch (imperial) | 0.79" |
| Pitch (metric) | 20.07mm |
| Reel Length (imperial) | 10.0ft |
| Trade Size | 1 " |
| Wall Thickness (imperial) | 0.041" |
| Wall Thickness (metric) | 1.05mm |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Halogen Free | Yes |
| Material | PP |
| Material | Polypropylene (PP) |
| Melting Point | +284 °F (+140 °C) |
| Operating Temperature | -76°F to +230°F (-60°C to +110°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS Compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
| UV Resistant | No |
