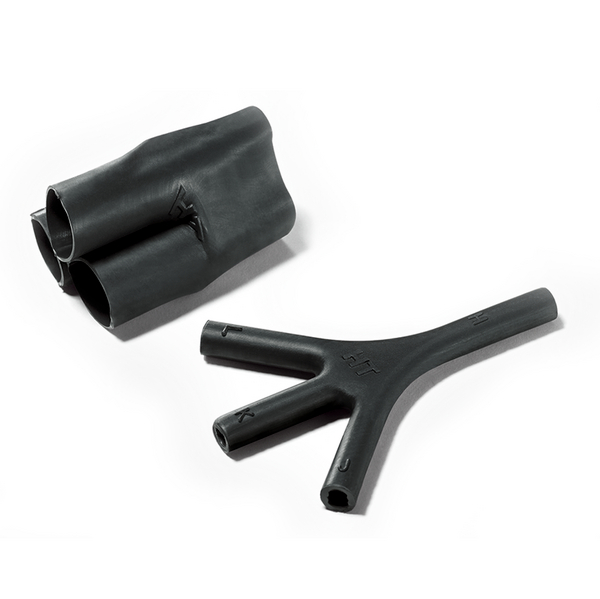

Heat Shrink Molded Shapes, Low Profile Transition 3-Way Boot, 573H535-9, PO-X, BK, 5/bag
Art.-No. 422-60302
|
|
Copied
- For cable harness breakouts or transitions
- Strain relief, sealing and mechanical protection
| Application | Heat Shrinkable Moulded Shapes for use in Electical and Electronic Cable Harness Applications |
| Color | Black (BK) |
| Description | Helashrink 573H series provides strain relief, sealing and mechanical protection on cable harness breakouts or transitions. |
| Global Part Number | 573H535-9-PO-X-BK |
| Packaging Type | bag |
| Part No. | 422-60302 |
| Product Subfamily | Heat Shrink Shapes - Low-Profile |
| Product family | Heat Shrink Molded Shapes |
| Short Description | Heat Shrink Molded Shapes, Low Profile Transition 3-Way Boot, 573H535-9, PO-X, BK, 5/bag |
| Type | 573H535-9 |
| UV Resistant | No |
|
|
|
| ⌀J/K/L max. b | 33.2mm |
| ⌀J/K/L min. a | 54.8mm |
| Flexibility | Flexible |
| For Object Outside Diameter | 46.52-86.48 mm |
| H Recovered Dia. Max. b (imperial) | 1.29" |
| H Recovered Dia. Max. b (metric) | 33.2mm |
| H Supplied Dia. Min. a (imperial) | 3.89" |
| H Supplied Dia. Min. a (metric) | 99.8mm |
| J Recovered Dia. Max. b (imperial) | 1.29" |
| J Recovered Dia. Max. b (metric) | 33.2mm |
| J Supplied Dia. Min. a (imperial) | 2.14" |
| J Supplied Dia. Min. a (metric) | 54.8mm |
| K Recovered Dia. Max. b (imperial) | 1.29" |
| K Recovered Dia. Max. b (metric) | 33.2mm |
| K Recovered Dia. Min. a (imperial) | 2.14" |
| K Recovered Dia. Min. a (metric) | 54.8mm |
| Max. Diameter J/K/L b | 1.29" |
| Min. Diameter J/K/L a | 2.13" |
| P Nominal Pitch b (imperial) | 11.49" |
| P Nominal Pitch b (metric) | 294.6mm |
| P ± 10 % | 294.6mm |
| P ± 10% | 11.49" |
| Shrink Ratio | 3:1 |
| Tube Shape | Multi-Outlet |
