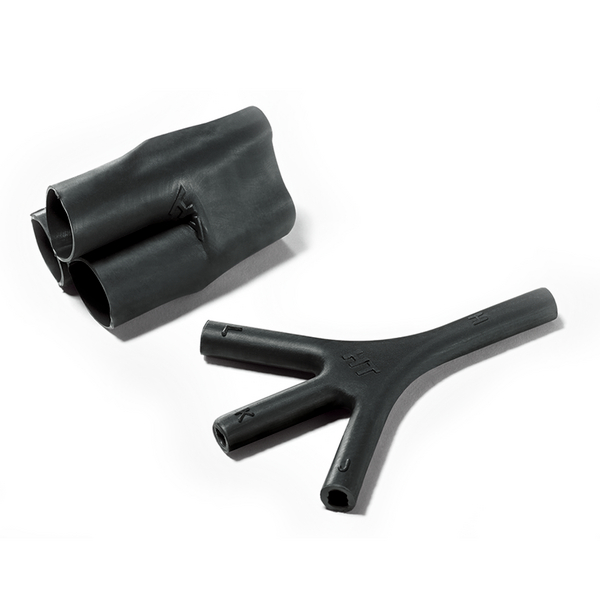

Heat Shrink Molded Shapes, Low Profile Transition 3-Way Boot, 573H532-8, PEEX, BK, 5/bag
Part No. 422-60021
|
Copied
- For cable harness breakouts or transitions
- Strain relief, sealing and mechanical protection
| Brand Family | HELASHRINK |
| Color | Black (BK) |
| Description | Helashrink 573H series provides strain relief, sealing and mechanical protection on cable harness breakouts or transitions. |
| Global Part Number | 573H532-8-PEEX-BK |
| Part Number | 422-60021 |
| Product Family | Heat Shrink Molded Shapes |
| Product Subfamily | Heat Shrink Shapes - Low-Profile |
| Short Description | Heat Shrink Molded Shapes, Low Profile Transition 3-Way Boot, 573H532-8, PEEX, BK, 5/bag |
| Type | 573H532-8 |
|
|
|
| ⌀J/K/L max. b | 6.6mm |
| ⌀J/K/L min. a | 13.2mm |
| Flexibility | Flexible |
| For Object Outside Diameter | 9.24-17.16 mm |
| H Recovered Dia. Max. b (imperial) | 0.26" |
| H Recovered Dia. Max. b (metric) | 6.6mm |
| H Supplied Dia. Min. a (imperial) | 0.77" |
| H Supplied Dia. Min. a (metric) | 19.8mm |
| Max. Diameter J/K/L b | .26" |
| Min. Diameter J/K/L a | .51" |
| P Nominal Pitch b (imperial) | 3.35" |
| P Nominal Pitch b (metric) | 85.8mm |
| Shrink Ratio | 3:1 |
| Tube Shape | Multi-Outlet |
| Dielectric Strength (metric) | 20kV/mm |
| Dielectric Strength test method | IEC 243 |
| Flammability | ASTM D635 |
| Hazardous Goods | No |
| Material | PEEX |
| Material | Polyester elastomer cross-linked (PEEX) |
| Min. Shrink Temperature | +212 °F (+100 °C) |
| Operating Temperature | -67°F to +248°F (-55°C to +120°C) |
| REACH Conformity | No |
| ROHS Compliant | Yes |
| UV Resistant | No |
