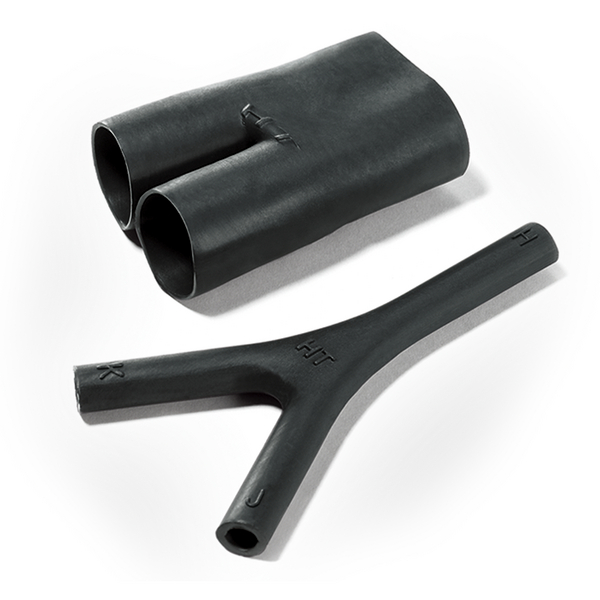

Heat Shrink Molded Shapes, Low Profile Transition Y-Boot, 492H414-9, PO-X, BK, 5/bag
Art.-No. 422-50202
|
|
Copied
- For cable harness breakouts or transitions
- Strain relief, sealing and mechanical protection
| Application | Military and general performance harnessing. |
| Color | Black (BK) |
| Description | Helashrink 492H series provides strain relief, sealing and mechanical protection on cable harness breakouts or transitions. |
| Global Part Number | 492H414-9-PO-X-BK |
| Packaging Type | bag |
| Part No. | 422-50202 |
| Product Subfamily | Heat Shrink Shapes - Angles |
| Product family | Heat Shrink Molded Shapes |
| Short Description | Heat Shrink Molded Shapes, Low Profile Transition Y-Boot, 492H414-9, PO-X, BK, 5/bag |
| Type | 492H414-9 |
| UV Resistant | No |
|
|
|
| ⌀J/K max. b | 20.1mm |
| ⌀J/K min. a | 40.1mm |
| ⌀J/K min. a | 40.1mm |
| Flexibility | Flexible |
| For Object Outside Diameter | 28.12-52.18 mm |
| H Recovered Dia. Max. b (imperial) | 0.79" |
| H Recovered Dia. Max. b (metric) | 20.1mm |
| H Supplied Dia. Min. a (imperial) | 2.37" |
| H Supplied Dia. Min. a (metric) | 60.2mm |
| J Recovered Dia. Max. b (imperial) | .79" |
| J Recovered Dia. Max. b (metric) | 20.1mm |
| J Supplied Dia. Min. a (imperial) | 1.58" |
| J Supplied Dia. Min. a (metric) | 40.1mm |
| K Recovered Dia. Max. b (imperial) | .79" |
| K Recovered Dia. Max. b (metric) | 20.1mm |
| K Recovered Dia. Min. a (imperial) | 1.58" |
| K Recovered Dia. Min. a (metric) | 40.1mm |
| Max. Diameter J/K b | .79" |
| Min. Diameter J/K a | 1.58" |
| Min. Diameter J/K a | 1.58" |
| P Nominal Pitch b (imperial) | 7.26" |
| P Nominal Pitch b (metric) | 184.4mm |
| S Nominal Length (imperial) | 3.73" |
| Shrink Ratio | 3:1 |
| Tube Shape | Angle |
