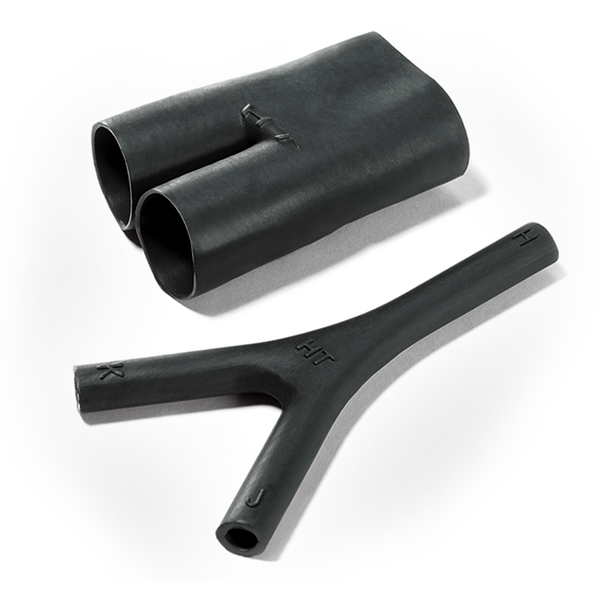

Heat Shrink Molded Shapes, Low Profile Transition Y-Boot, 492H412-9, PO-X, BK, 5/bag
Part No. 422-50000
|
Copied
- For cable harness breakouts or transitions
- Strain relief, sealing and mechanical protection
| Brand Family | HELASHRINK |
| Color | Black (BK) |
| Description | Helashrink 492H series provides strain relief, sealing and mechanical protection on cable harness breakouts or transitions. |
| Global Part Number | 492H412-9-PO-X-BK |
| Part Number | 422-50000 |
| Product Family | Heat Shrink Molded Shapes |
| Product Subfamily | Heat Shrink Shapes - Angles |
| Short Description | Heat Shrink Molded Shapes, Low Profile Transition Y-Boot, 492H412-9, PO-X, BK, 5/bag |
| Type | 492H412-9 |
|
|
|
| ⌀J/K max. b | 6.6mm |
| ⌀J/K max. b | 6.6mm |
| ⌀J/K min. a | 13.2mm |
| ⌀J/K min. a | 13.2mm |
| Flexibility | Flexible |
| For Object Outside Diameter | 9.24-17.16 mm |
| H Recovered Dia. Max. b (imperial) | 0.26" |
| H Recovered Dia. Max. b (metric) | 6.6mm |
| H Supplied Dia. Min. a (imperial) | 0.77" |
| H Supplied Dia. Min. a (metric) | 19.8mm |
| J Recovered Dia. Max. b (imperial) | .26" |
| J Recovered Dia. Max. b (metric) | 6.6mm |
| J Supplied Dia. Min. a (imperial) | .51" |
| J Supplied Dia. Min. a (metric) | 13.2mm |
| K Recovered Dia. Max. b (imperial) | .26" |
| K Recovered Dia. Max. b (metric) | 6.6mm |
| K Recovered Dia. Min. a (imperial) | .51" |
| K Recovered Dia. Min. a (metric) | 13.2mm |
| Max. Diameter J/K b | .25" |
| Max. Diameter J/K b | .25" |
| Min. Diameter J/K a | .51" |
| Min. Diameter J/K a | .51" |
| P Nominal Pitch b (imperial) | 3.08" |
| P Nominal Pitch b (metric) | 78.2mm |
| S Nominal Length (imperial) | 1.60" |
| Shrink Ratio | 3:1 |
| Tube Shape | Angle |
| Dielectric Strength (metric) | 20kV/mm |
| Dielectric Strength test method | IEC 243 |
| Flammability | ASTM D635 |
| Hazardous Goods | No |
| Material | PO-X |
| Material | Polyolefin, cross-linked (PO-X) |
| Min. Shrink Temperature | +212 °F (+100 °C) |
| Operating Temperature | -67°F to +248°F (-55°C to +120°C) |
| REACH Conformity | No |
| ROHS Compliant | Yes |
| UV Resistant | No |
