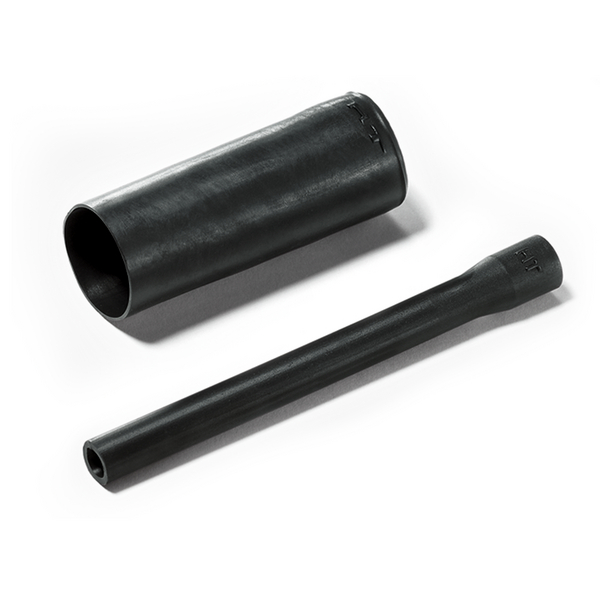

Heat Shrink Molded Shapes, Low Profile Straight Boot, 313F332-9, PO-X, BK, 5/bag
Part No. 422-20100
|
Copied
- Connector strain relief for small cable diameters requiring high shrink ratio
| Brand Family | HELASHRINK |
| Color | Black (BK) |
| Description | This boot provides strain relief in applications with partially loaded connectors, resulting in small cable diameters requiring a high shrink ratio. |
| Global Part Number | 313F332-9-PO-X-BK |
| Part Number | 422-20100 |
| Product Family | Heat Shrink Molded Shapes |
| Product Subfamily | Heat Shrink Shapes - Low-Profile |
| Short Description | Heat Shrink Molded Shapes, Low Profile Straight Boot, 313F332-9, PO-X, BK, 5/bag |
| Type | 313F332-9 |
|
|
|
| Flexibility | Flexible |
| For Object Outside Diameter | 15.98-24.32 mm |
| H Recovered Dia. Max. b (imperial) | 0.51" |
| H Recovered Dia. Max. b (metric) | 13.2mm |
| H Supplied Dia. Min. a (imperial) | 1.06" |
| H Supplied Dia. Min. a (metric) | 27.1mm |
| J Recovered Dia. Max. b (imperial) | .30" |
| J Recovered Dia. Max. b (metric) | 7.6mm |
| J Supplied Dia. Min. a (imperial) | .81" |
| J Supplied Dia. Min. a (metric) | 20.8mm |
| P ± 10 % | 121.1mm |
| P ± 10% | 4.72" |
| Shrink Ratio | 3:1 |
| Tube Shape | Low-Profile |
