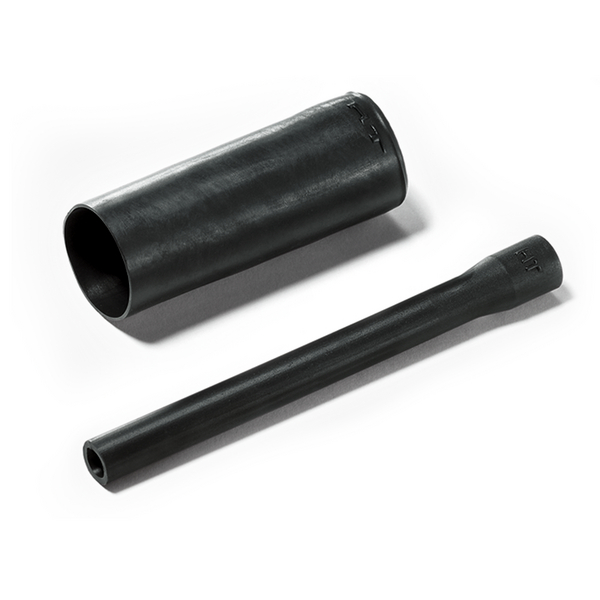

Heat Shrink Molded Shapes, Low Profile Straight Boot, 313F322, PO-X, BK, 5/bag
Art.-No. 422-20005
|
|
Copied
- Connector strain relief for small cable diameters requiring high shrink ratio
| Application | Military and general performance harnessing. |
| Color | Black (BK) |
| Description | This boot provides strain relief in applications with partially loaded connectors, resulting in small cable diameters requiring a high shrink ratio. |
| PART DESCRIPTION | 313F322-PO-X-BK |
| Packaging Type | bag |
| Part No. | 422-20005 |
| Product Subfamily | Heat Shrink Shapes - Low-Profile |
| Product family | Heat Shrink Molded Shapes |
| Short Description | Heat Shrink Molded Shapes, Low Profile Straight Boot, 313F322, PO-X, BK, 5/bag |
| Type | 313F322 |
| UV Resistant | No |
|
|
|
| Flexibility | Flexible |
| For Object Outside Diameter | 12.68-21.02 mm |
| H Recovered Dia. Max. b (imperial) | 0.39" |
| H Recovered Dia. Max. b (metric) | 9.9mm |
| H Supplied Dia. Min. a (imperial) | 0.93" |
| H Supplied Dia. Min. a (metric) | 23.8mm |
| J Recovered Dia. Max. b (imperial) | .26" |
| J Recovered Dia. Max. b (metric) | 6.6mm |
| J Supplied Dia. Min. a (imperial) | .67" |
| J Supplied Dia. Min. a (metric) | 17.2mm |
| P ± 10 % | 105.9mm |
| P ± 10% | 4.13" |
| Shrink Ratio | 3:1 |
| Tensile Strength | 12MPa |
| Tube Shape | Low-Profile |
