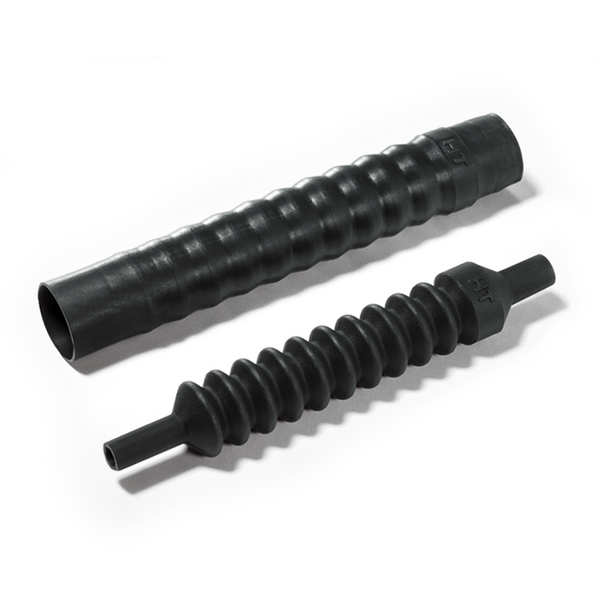

Heat Shrink Molded Shapes, Low Profile Convolute Boot, 313C753, PO-X, BK, 5/bag
Art.-No. 422-00300
|
|
Copied
- For circular grooved adapters to provide strain relief
- Excellent environmental sealing with adhesive
- Convoluted design grants flexibility for different cable outlet angles
| Application | Military and general performance harnessing. |
| Color | Black (BK) |
| Description | Convoluted boot design provides strain relief in applications with partially loaded connectors, resulting in small cable diameters requiring a high shrink ratio. |
| PART DESCRIPTION | 313C753-PO-X-BK |
| Packaging Type | bag |
| Part No. | 422-00300 |
| Product Subfamily | Heat Shrink Shapes - Low-Profile |
| Product family | Heat Shrink Molded Shapes |
| Short Description | Heat Shrink Molded Shapes, Low Profile Convolute Boot, 313C753, PO-X, BK, 5/bag |
| Type | 313C753 |
| UV Resistant | No |
|
|
|
| B nom. | 3.05" |
| B nom. | 78.2mm |
| Flexibility | Flexible |
| For Object Outside Diameter | 26.68-39.82 mm |
| H Recovered Dia. Max. b (imperial) | 0.87" |
| H Recovered Dia. Max. b (metric) | 22.3mm |
| H Supplied Dia. Min. a (imperial) | 1.72" |
| H Supplied Dia. Min. a (metric) | 44.2mm |
| J Recovered Dia. Max. b (imperial) | .68" |
| J Recovered Dia. Max. b (metric) | 17.5mm |
| J Supplied Dia. Min. a (imperial) | 1.42" |
| J Supplied Dia. Min. a (metric) | 36.5mm |
| Max. R | 1.47" |
| P ± 10 % | 158.7mm |
| P ± 10% | 6.19" |
| R max. | 37.8mm |
| Shrink Ratio | 3:1 |
| Tube Shape | Low-Profile |
