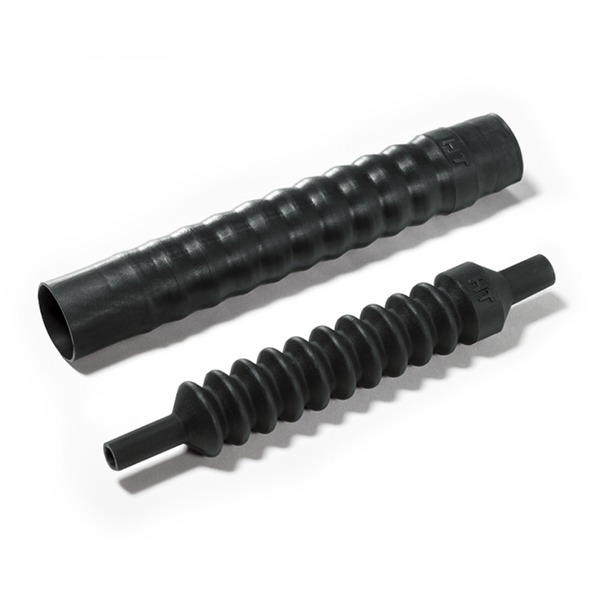

Heat Shrink Molded Shapes, Low Profile Convolute Boot, 313C722-8, PEEX, BK, 5/bag
Part No. 422-00032
|
Copied
- For circular grooved adapters to provide strain relief
- Excellent environmental sealing with adhesive
- Convoluted design grants flexibility for different cable outlet angles
| Brand Family | HELASHRINK |
| Color | Black (BK) |
| Description | Convoluted boot design provides strain relief in applications with partially loaded connectors, resulting in small cable diameters requiring a high shrink ratio. |
| Global Part Number | 313C722-8-PEEX-BK |
| Part Number | 422-00032 |
| Product Family | Heat Shrink Molded Shapes |
| Product Subfamily | Heat Shrink Shapes - Low-Profile |
| Short Description | Heat Shrink Molded Shapes, Low Profile Convolute Boot, 313C722-8, PEEX, BK, 5/bag |
| Type | 313C722-8 |
|
|
|
| B nom. | 2.43" |
| B nom. | 62.4mm |
| Flexibility | Flexible |
| For Object Outside Diameter | 8.36-12.74 mm |
| H Recovered Dia. Max. b (imperial) | 0.27" |
| H Recovered Dia. Max. b (metric) | 6.9mm |
| H Supplied Dia. Min. a (imperial) | 0.55" |
| H Supplied Dia. Min. a (metric) | 14.2mm |
| J Recovered Dia. Max. b (imperial) | .19" |
| J Recovered Dia. Max. b (metric) | 4.8mm |
| J Supplied Dia. Min. a (imperial) | .43" |
| J Supplied Dia. Min. a (metric) | 11.1mm |
| Max. R | .82" |
| P ± 10 % | 12.6mm |
| P ± 10% | 4.70" |
| R max. | 21.1mm |
| Shrink Ratio | 3:1 |
| Tensile Strength | 20MPa |
| Tube Shape | Low-Profile |
