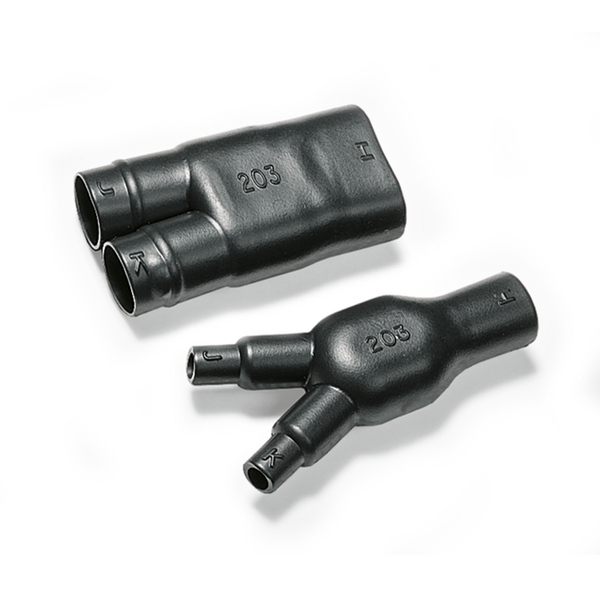

Heat Shrink Molded Shapes, 200 Series 2-Way Outlet - VG, 213-1-G, PO-X, BK, 1/bag
Part No. 402-13180
|
Copied
- Mechanical tension relief in cable harnesses
| Brand Family | HELASHRINK |
| Color | Black (BK) |
| Description | Healshrink 200 series features branching parts that are employed for mechanical tension relief in cable harnesses. |
| Global Part Number | 213-1-G-PO-X-BK |
| Part Number | 402-13180 |
| Product Family | Heat Shrink Molded Shapes |
| Product Subfamily | Heat Shrink Shapes - Multi-Outlet |
| Short Description | Heat Shrink Molded Shapes, 200 Series 2-Way Outlet - VG, 213-1-G, PO-X, BK, 1/bag |
| Type | 213-1-G |
|
|
|
| Flexibility | Semi rigid |
| For Object Outside Diameter | 9.78-15.42 mm |
| H Recovered Dia. Max. b (imperial) | 0.31" |
| H Recovered Dia. Max. b (metric) | 7.9mm |
| H Supplied Dia. Min. a (imperial) | 0.67" |
| H Supplied Dia. Min. a (metric) | 17.3mm |
| HW ± 20 % | 2.3mm |
| HW ± 20% | .09" |
| J Recovered Dia. Max. b (imperial) | .31" |
| J Recovered Dia. Max. b (metric) | 7.9mm |
| J Supplied Dia. Min. a (imperial) | .43" |
| J Supplied Dia. Min. a (metric) | 11.1mm |
| JW ± 20 % | 2.3mm |
| JW ± 20% | .09" |
| P ± 10 % | 140.0mm |
| P ± 10% | 5.46" |
| S Nominal Length (imperial) | 2.5" |
| S Nominal Length (metric) | 64.0mm |
| Tube Shape | Multi-Outlet |
| Dielectric Strength (metric) | 15kV/mm |
| Dielectric Strength test method | ASTM D2671 |
| Flammability | ASTM D635 |
| Hazardous Goods | No |
| Material | PO-X |
| Material | Polyolefin, cross-linked (PO-X) |
| Min. Shrink Temperature | +275 °F (+135 °C) |
| Nato number / cage code | 5970-01-373-9980, 5970-99-806-0741 |
| Operating Temperature | -103°F to +302°F (-75°C to +150°C) |
| REACH Conformity | No |
| ROHS Compliant | Yes |
| UV Resistant | No |
