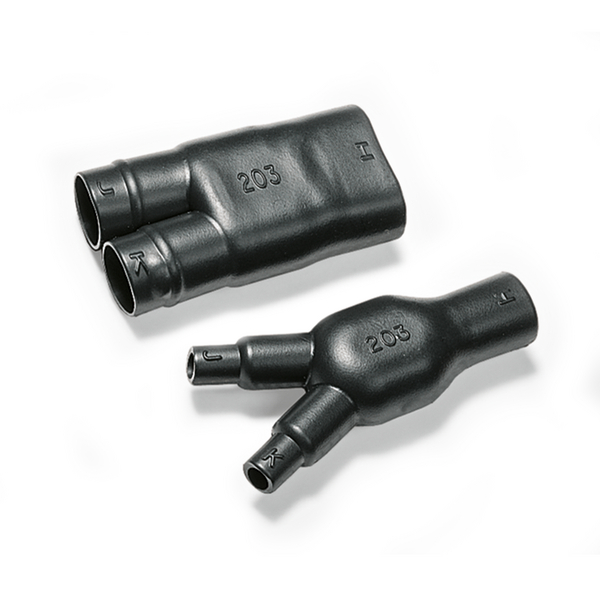

Heat Shrink Molded Shapes, 200 Series 2-Way Outlet - VG, 203-1-G, PO-X, BK, 1/bag
Art.-No. 402-03035
|
|
Copied
- Mechanical tension relief in cable harnesses
| Application | Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications. |
| Color | Black (BK) |
| Description | Healshrink 200 series features branching parts that are employed for mechanical tension relief in cable harnesses. |
| PART DESCRIPTION | 203-1-G-PO-X-BK |
| Packaging Type | bag |
| Part No. | 402-03035 |
| Product Subfamily | Heat Shrink Shapes - Multi-Outlet |
| Product family | Heat Shrink Molded Shapes |
| Short Description | Heat Shrink Molded Shapes, 200 Series 2-Way Outlet - VG, 203-1-G, PO-X, BK, 1/bag |
| Type | 203-1-G |
| UV Resistant | No |
|
|
|
| ⌀J/K max. b | 6mm |
| ⌀J/K min. a | 13mm |
| For Object Outside Diameter | 15-24 mm |
| H Recovered Dia. Max. b (imperial) | 0.47" |
| H Recovered Dia. Max. b (metric) | 12mm |
| H Supplied Dia. Min. a (imperial) | 1.05" |
| H Supplied Dia. Min. a (metric) | 27mm |
| J Recovered Dia. Max. b (imperial) | .23" |
| J Recovered Dia. Max. b (metric) | 6mm |
| J Supplied Dia. Min. a (imperial) | .51" |
| J Supplied Dia. Min. a (metric) | 13mm |
| K Recovered Dia. Max. b (imperial) | .23" |
| K Recovered Dia. Max. b (metric) | 6mm |
| K Recovered Dia. Min. a (imperial) | .51" |
| K Recovered Dia. Min. a (metric) | 13mm |
| Max. Diameter J/K b | .23" |
| Min. Diameter J/K a | .51" |
| P ± 10 % | 80mm |
| P ± 10% | 3.12" |
| S Nominal Length (imperial) | 1.68" |
| S Nominal Length (metric) | 43mm |
| Tube Shape | Multi-Outlet |
