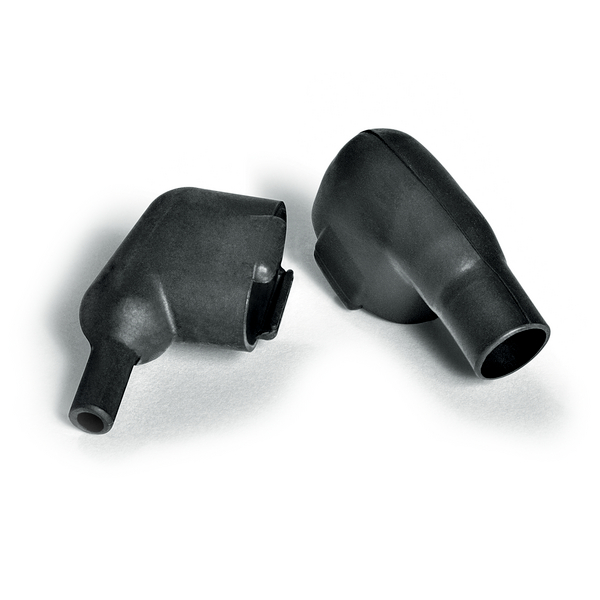

Heat Shrink Molded Shapes, 2100 Series D-Boot 90-Degree, 2105-1-G, PO-X, BK, 1/bag
Part No. 421-05003
|
Copied
- Provides strain relief and mechanical protection for Min-D series connectors
| Brand Family | HELASHRINK |
| Color | Black (BK) |
| Description | Helashrink 2100 series, with 90° entry, features a unique design that allows perfect 90° orientation on installation. It can be supplied with or without lips in a range of material and adhesive combinations to suit most applications. |
| Global Part Number | 2105-1-G-PO-X-BK |
| Part Number | 421-05003 |
| Product Family | Heat Shrink Molded Shapes |
| Product Subfamily | Heat Shrink Shapes - Angles |
| Short Description | Heat Shrink Molded Shapes, 2100 Series D-Boot 90-Degree, 2105-1-G, PO-X, BK, 1/bag |
| Type | 2105-1-G |
|
|
|
| Angle | 90 |
| Flexibility | Semi rigid |
| For Object Outside Diameter | 57.9-57.9 mm |
| H Recovered Dia. Max. b (imperial) | 2.26" |
| H Recovered Dia. Max. b (metric) | 57.9mm |
| H Supplied Dia. Min. a (imperial) | 2.26" |
| H Supplied Dia. Min. a (metric) | 57.9mm |
| J Recovered Dia. Max. b (imperial) | .53" |
| J Recovered Dia. Max. b (metric) | 13.7mm |
| J Supplied Dia. Min. a (imperial) | .53" |
| J Supplied Dia. Min. a (metric) | 13.7mm |
| K Recovered Dia. Max. b (imperial) | .42" |
| K Recovered Dia. Max. b (metric) | 10.7mm |
| K Recovered Dia. Min. a (imperial) | .74" |
| K Recovered Dia. Min. a (metric) | 19mm |
| P Nominal Pitch b (imperial) | 2.20" |
| P Nominal Pitch b (metric) | 55.9mm |
| P ± 10 % | 55.9mm |
| P ± 10% | 2.18" |
| Tensile Strength | 15MPa |
| Tube Shape | Angle |
| Flammability | ASTM D635 |
| Hazardous Goods | No |
| Material | PO-X |
| Material | Polyolefin, cross-linked (PO-X) |
| Min. Shrink Temperature | +275 °F (+135 °C) |
| Nato number / cage code | 5970-99-769-2061, 5970-01-299-0467 |
| Operating Temperature | -103°F to +302°F (-75°C to +150°C) |
| REACH Conformity | No |
| ROHS Compliant | Yes |
| UV Resistant | No |
