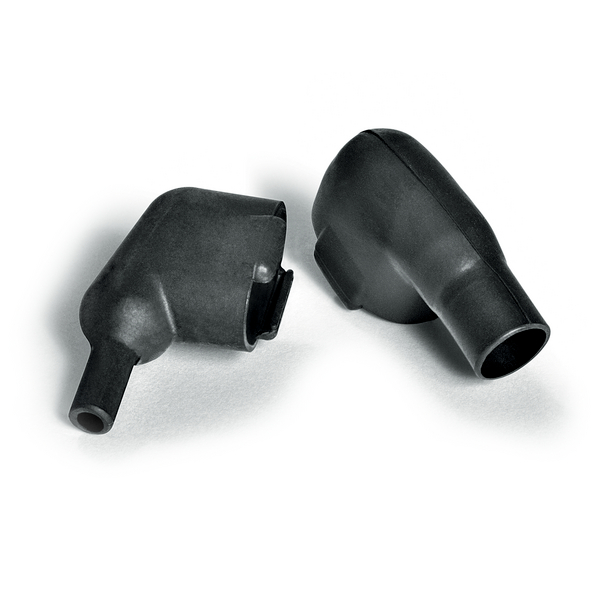

Heat Shrink Molded Shapes, 2100 Series D-Boot 90-Degree, 2101-1-G, PO-X, BK, 1/bag
Art.-No. 421-01004
|
|
Copied
- Provides strain relief and mechanical protection for Min-D series connectors
| Application | Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications. |
| Color | Black (BK) |
| Description | Helashrink 2100 series, with 90° entry, features a unique design that allows perfect 90° orientation on installation. It can be supplied with or without lips in a range of material and adhesive combinations to suit most applications. |
| PART DESCRIPTION | 2101-1-G-PO-X-BK |
| Packaging Type | bag |
| Part No. | 421-01004 |
| Product Subfamily | Heat Shrink Shapes - Angles |
| Product family | Heat Shrink Molded Shapes |
| Short Description | Heat Shrink Molded Shapes, 2100 Series D-Boot 90-Degree, 2101-1-G, PO-X, BK, 1/bag |
| Type | 2101-1-G |
| UV Resistant | No |
|
|
|
| Angle | 90 |
| Flexibility | Semi rigid |
| For Object Outside Diameter | 20.3-20.3 mm |
| H Recovered Dia. Max. b (imperial) | 0.79" |
| H Recovered Dia. Max. b (metric) | 20.3mm |
| H Supplied Dia. Min. a (imperial) | 0.79" |
| H Supplied Dia. Min. a (metric) | 20.3mm |
| J Recovered Dia. Max. b (imperial) | .42" |
| J Recovered Dia. Max. b (metric) | 10.7mm |
| J Supplied Dia. Min. a (imperial) | .42" |
| J Supplied Dia. Min. a (metric) | 10.7mm |
| K Recovered Dia. Max. b (imperial) | .16" |
| K Recovered Dia. Max. b (metric) | 4.1mm |
| K Recovered Dia. Min. a (imperial) | .3" |
| K Recovered Dia. Min. a (metric) | 7.8mm |
| P ± 10 % | 25.9mm |
| P ± 10% | 1.01" |
| Tensile Strength | 15MPa |
| Tube Shape | Angle |
