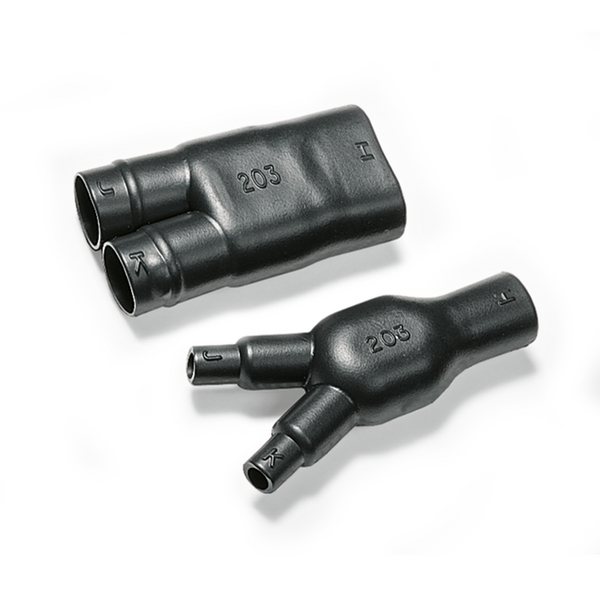

Heat Shrink Molded Shapes, 200 Series 2-Way Outlet - VG, 204-1-B7, PO-X, BK, 1/bag
Art.-No. 402-04130
|
|
Copied
- Mechanical tension relief in cable harnesses
| Application | Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications. |
| Color | Black (BK) |
| Description | Healshrink 200 series features branching parts that are employed for mechanical tension relief in cable harnesses. |
| Global Part Number | 204-1-B7-PO-X-BK |
| Packaging Type | pcs. |
| Part No. | 402-04130 |
| Product Subfamily | Heat Shrink Shapes - Multi-Outlet |
| Product family | Heat Shrink Molded Shapes |
| Short Description | Heat Shrink Molded Shapes, 200 Series 2-Way Outlet - VG, 204-1-B7, PO-X, BK, 1/bag |
| Type | 204-1-B7 |
| UV Resistant | No |
|
|
|
| ⌀J/K max. b | 12mm |
| ⌀J/K min. a | 27mm |
| Flexibility | Semi rigid |
| For Object Outside Diameter | 22.2-34.8 mm |
| H Recovered Dia. Max. b (imperial) | 0.7" |
| H Recovered Dia. Max. b (metric) | 18.0mm |
| H Supplied Dia. Min. a (imperial) | 1.52" |
| H Supplied Dia. Min. a (metric) | 39mm |
| J Recovered Dia. Max. b (imperial) | .47" |
| J Recovered Dia. Max. b (metric) | 12mm |
| J Supplied Dia. Min. a (imperial) | 1.05" |
| J Supplied Dia. Min. a (metric) | 27mm |
| K Recovered Dia. Max. b (imperial) | .47" |
| K Recovered Dia. Max. b (metric) | 12mm |
| K Recovered Dia. Min. a (imperial) | 1.05" |
| K Recovered Dia. Min. a (metric) | 27mm |
| Max. Diameter J/K b | .47" |
| Min. Diameter J/K a | 1.05" |
| P ± 10 % | 131mm |
| P ± 10% | 5.11" |
| S Nominal Length (imperial) | 3.16" |
| S Nominal Length (metric) | 81mm |
| Tube Shape | Multi-Outlet |
