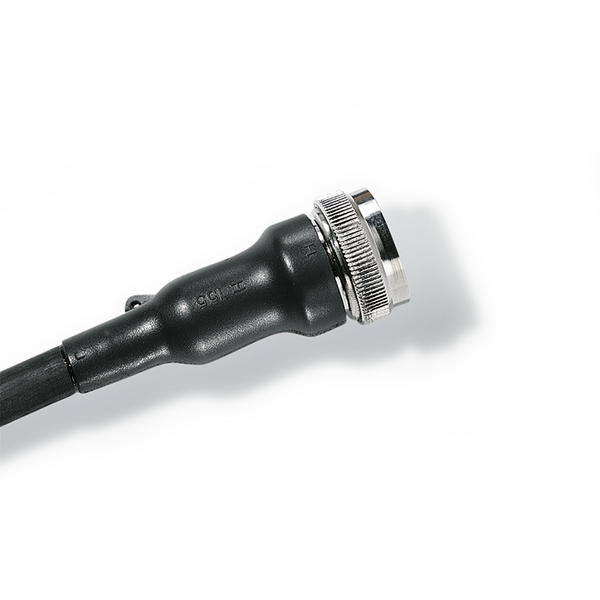

Heat Shrink Molded Shapes, 150 Series Bottle with Rib - VG, 158-43-G, PO-X, BK, 1/bag
Art.-No. 401-58035
|
|
Copied
- Use in conjunction with circular grooved adaptor
- For strain relief and environmental sealing
| Application | Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications. |
| Color | Black (BK) |
| Description | Helashrink 150 series, VG style, features an inside lip that is used for a reinforced stress relief. Special fitting 199-4-G for audio plugs has external ribs for an improved grip. |
| PART DESCRIPTION | 158-43-G-PO-X-BK |
| Packaging Type | bag |
| Part No. | 401-58035 |
| Product Subfamily | Heat Shrink Shapes - Bottle |
| Product family | Heat Shrink Molded Shapes |
| Short Description | Heat Shrink Molded Shapes, 150 Series Bottle with Rib - VG, 158-43-G, PO-X, BK, 1/bag |
| Type | 158-43-G |
| UV Resistant | No |
|
|
|
| For Object Outside Diameter | 40-55 mm |
| H Recovered Dia. Max. b (imperial) | 1.38" |
| H Recovered Dia. Max. b (metric) | 35.0mm |
| H Supplied Dia. Min. a (imperial) | 2.34" |
| H Supplied Dia. Min. a (metric) | 60mm |
| HW ± 20 % | 3.2mm |
| HW ± 20% | .12" |
| J Recovered Dia. Max. b (imperial) | .62" |
| J Recovered Dia. Max. b (metric) | 16mm |
| J Supplied Dia. Min. a (imperial) | 2.34" |
| J Supplied Dia. Min. a (metric) | 60mm |
| JW ± 20 % | 1.5mm |
| JW ± 20% | 0.06" |
| P ± 10 % | 130mm |
| P ± 10% | 5.07" |
| S Nominal Length (imperial) | 1.48" |
| S Nominal Length (metric) | 38mm |
| Shrink Ratio | up to 4:1 |
| T ± 20% | .07" |
| Tube Shape | Bottle |
