Heat Shrink Molded Shapes, 150 Series Bottle with Rib - VG, 152-41-G, PO-X, BK, 1/bag
Part No. 401-52041
|
Copied

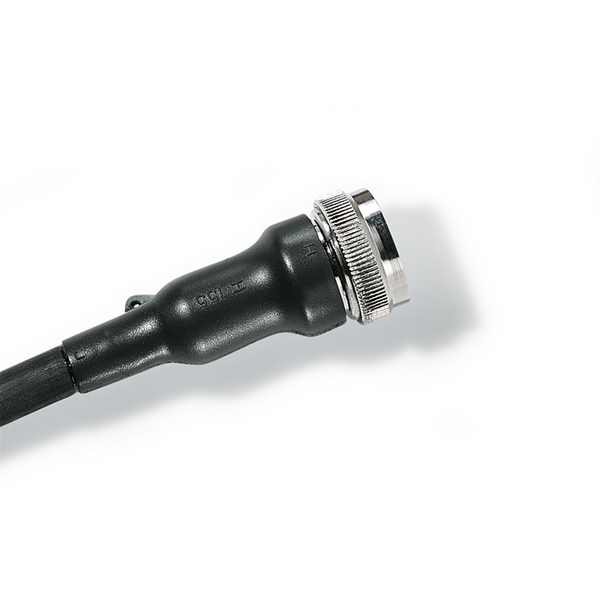

- Straight plug-and-socket connector terminal casing
- Protects against environmental stresses for circular plug connectors
- Inside lip for reinforced stress relief
- Special 199-4-G fitting for audio plugs has external ribs for improved grip
| Brand Family | HELASHRINK |
| Color | Black (BK) |
| Description | Helashrink 150 series, VG style, features an inside lip that is used for a reinforced stress relief. Special fitting 199-4-G for audio plugs has external ribs for an improved grip. |
| Global Part Number | 152-41-G-PO-X-BK |
| Part Number | 401-52041 |
| Product Family | Heat Shrink Molded Shapes |
| Product Subfamily | Heat Shrink Shapes - Bottle |
| Short Description | Heat Shrink Molded Shapes, 150 Series Bottle with Rib - VG, 152-41-G, PO-X, BK, 1/bag |
| Type | 152-41-G |
|
|
|
| Flexibility | Semi rigid |
| For Object Outside Diameter | 13.2-21.3 mm |
| H Recovered Dia. Max. b (imperial) | 0.41" |
| H Recovered Dia. Max. b (metric) | 10.5mm |
| H Supplied Dia. Min. a (imperial) | 0.94" |
| H Supplied Dia. Min. a (metric) | 24mm |
| HW ± 20 % | 1.6mm |
| HW ± 20% | .06" |
| J Recovered Dia. Max. b (imperial) | .23" |
| J Recovered Dia. Max. b (metric) | 6mm |
| J Supplied Dia. Min. a (imperial) | .94" |
| J Supplied Dia. Min. a (metric) | 24mm |
| JW ± 20 % | 0.5mm |
| JW ± 20% | .02" |
| P ± 10 % | 26mm |
| P ± 10% | 1.02" |
| S Nominal Length (imperial) | .39" |
| S Nominal Length (metric) | 10mm |
| Shrink Ratio | 3:1 |
| T ± 20% | .04" |
| Tube Shape | Bottle |
| Dielectric Strength (metric) | 14kV/mm |
| Dielectric Strength test method | ASTM D2671 |
| Flammability | ASTM D635 |
| Material | PO-X |
| Material | Polyolefin, chemically cross-linked (PO-X) |
| Min. Shrink Temperature | +275 °F (+135 °C) |
| Nato number / cage code | 5970-01-272-5925, 5970-99-930-6749 |
| Operating Temperature | -103°F to +302°F (-75°C to +150°C) |
| ROHS Compliant | Yes |
| UV Resistant | No |
