Heat Shrink Molded Shapes, 150 Series Bottle with Rib - VG, 157-42-B7, PO-X, BK, 1/bag
Art.-No. 401-57008
| 157-42-B7-PO-X-BK
|
Copied
- Use in conjunction with circular grooved adaptor
- For strain relief and environmental sealing
| Application | Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications. |
| Color | Black (BK) |

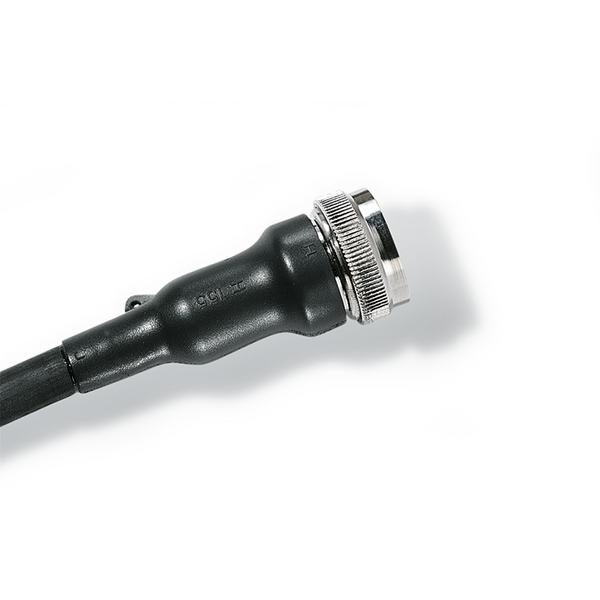

| Description | Helashrink 150 series, VG style, features an inside lip that is used for a reinforced stress relief. Special fitting 199-4-G for audio plugs has external ribs for an improved grip. |
| PART DESCRIPTION | 157-42-B7-PO-X-BK |
| Packaging Type | pcs. |
| Part No. | 401-57008 |
| Product Subfamily | Heat Shrink Shapes - Bottle |
| Product family | Heat Shrink Molded Shapes |
| Short Desc. | Heat Shrink Molded Shapes, 150 Series Bottle with Rib - VG, 157-42-B7, PO-X, BK, 1/bag |
| Type | 157-42-B7 |
| UV Resistant | No |
|
|
|
| For Object Outside Diameter | 31-40 mm |
| H Recovered Dia. Max. b (imperial) | 1.10" |
| H Recovered Dia. Max. b (metric) | 28.0mm |
| H Supplied Dia. Min. a (imperial) | 1.7" |
| H Supplied Dia. Min. a (metric) | 43mm |
| HW ± 20 % | 2.2mm |
| HW ± 20% | .09" |
| J Recovered Dia. Max. b (imperial) | .39" |
| J Recovered Dia. Max. b (metric) | 10.0mm |
| J Supplied Dia. Min. a (imperial) | 1.7" |
| J Supplied Dia. Min. a (metric) | 43.0mm |
| JW ± 20 % | 1.0mm |
| JW ± 20% | 0.04" |
| P ± 10 % | 79mm |
| P ± 10% | 3.11" |
| S Nominal Length (imperial) | .79" |
| S Nominal Length (metric) | 20mm |
| Shrink Ratio | up to 4.5:1 |
| T ± 20% | .07" |
