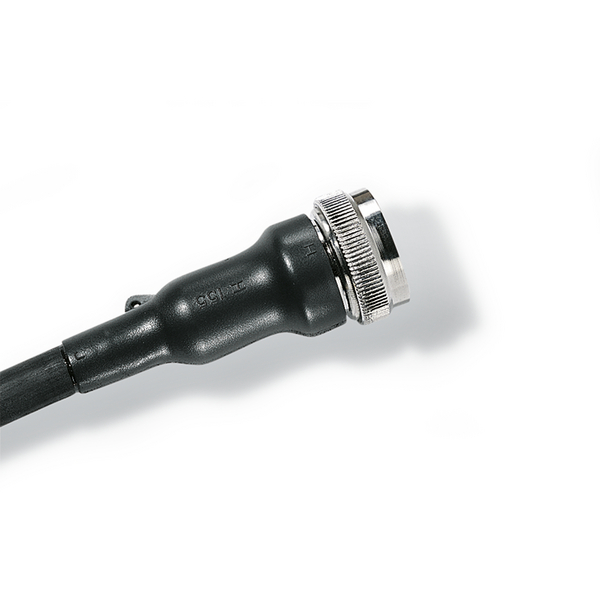

Heat Shrink Molded Shapes, 150 Series Bottle with Rib - VG,156-41-B7, PO-X, BK, 1/bag
Part No. 401-56001
|
Copied
- Use in conjunction with circular grooved adaptor
- For strain relief and environmental sealing
| Brand Family | HELASHRINK |
| Color | Black (BK) |
| Description | Helashrink 150 series, VG style, features an inside lip that is used for a reinforced stress relief. Special fitting 199-4-G for audio plugs has external ribs for an improved grip. |
| Global Part Number | 156-41-B7-PO-X-BK |
| Part Number | 401-56001 |
| Product Family | Heat Shrink Molded Shapes |
| Product Subfamily | Heat Shrink Shapes - Bottle |
| Short Description | Heat Shrink Molded Shapes, 150 Series Bottle with Rib - VG,156-41-B7, PO-X, BK, 1/bag |
| Type | 156-41-B7 |
|
|
|
| For Object Outside Diameter | 22.1-22.4 mm |
| H Recovered Dia. Max. b (imperial) | 0.87" |
| H Recovered Dia. Max. b (metric) | 22.0mm |
| H Supplied Dia. Min. a (imperial) | 0.89" |
| H Supplied Dia. Min. a (metric) | 22.5mm |
| HW ± 20 % | 2mm |
| HW ± 20% | .08" |
| J Recovered Dia. Max. b (imperial) | .34" |
| J Recovered Dia. Max. b (metric) | 8.5mm |
| J Supplied Dia. Min. a (imperial) | 1.42" |
| J Supplied Dia. Min. a (metric) | 36mm |
| JW ± 20 % | 1.0mm |
| JW ± 20% | 0.04" |
| P ± 10 % | 60mm |
| P ± 10% | 2.37" |
| S Nominal Length (imperial) | .79" |
| S Nominal Length (metric) | 20mm |
| T ± 20% | .04" |
| Tube Shape | Bottle |
