Heat Shrink Molded Shapes, 150 Series Bottle with Rib - VG,155-42-B7, PO-X, BK, 1/bag
Art.-No. 401-55820
|
|
Copied
- Use in conjunction with circular grooved adaptor
- For strain relief and environmental sealing
| Application | Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications. |
| Color | Black (BK) |

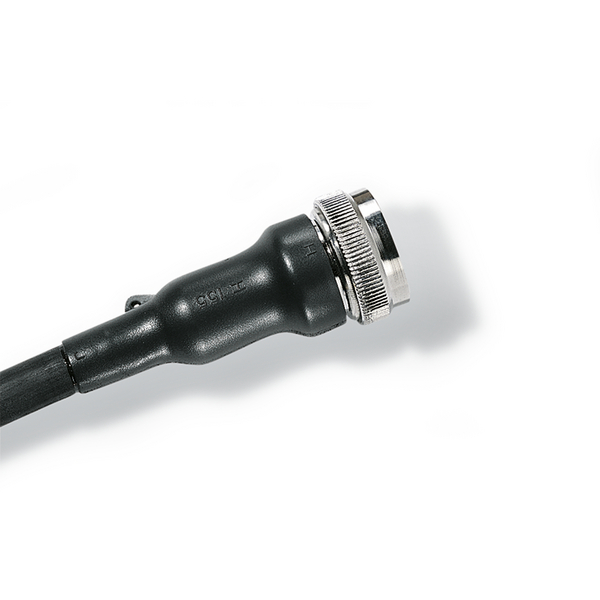

| Description | Helashrink 150 series, VG style, features an inside lip that is used for a reinforced stress relief. Special fitting 199-4-G for audio plugs has external ribs for an improved grip. |
| Global Part Number | 155-42-B7-PO-X-BK |
| Packaging Type | pcs. |
| Part No. | 401-55820 |
| Product Subfamily | Heat Shrink Shapes - Bottle |
| Product family | Heat Shrink Molded Shapes |
| Short Description | Heat Shrink Molded Shapes, 150 Series Bottle with Rib - VG,155-42-B7, PO-X, BK, 1/bag |
| Type | 155-42-B7 |
| UV Resistant | No |
|
|
|
| Flexibility | Semi rigid |
| For Object Outside Diameter | 20.6-28.4 mm |
| H Recovered Dia. Max. b (imperial) | 0.7" |
| H Recovered Dia. Max. b (metric) | 18.0mm |
| H Supplied Dia. Min. a (imperial) | 1.21" |
| H Supplied Dia. Min. a (metric) | 31mm |
| HW ± 20 % | 1.8mm |
| HW ± 20% | .07" |
| J Recovered Dia. Max. b (imperial) | .24" |
| J Recovered Dia. Max. b (metric) | 7mm |
| J Supplied Dia. Min. a (imperial) | 1.22" |
| J Supplied Dia. Min. a (metric) | 31mm |
| JW ± 20 % | 1.0mm |
| JW ± 20% | 0.04" |
| P ± 10 % | 67mm |
| P ± 10% | 2.61" |
| S Nominal Length (imperial) | .71" |
| S Nominal Length (metric) | 18mm |
| Shrink Ratio | up to 4.5:1 |
| T ± 20% | .04" |
| Tube Shape | Bottle |
