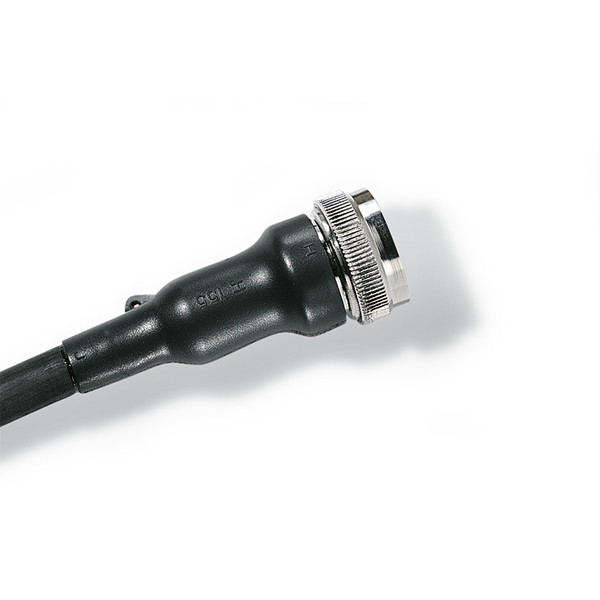

Heat Shrink Molded Shapes, 150 Series Bottle with Rib - VG, 154-42-B7, PO-X, BK, 1/bag
Part No. 401-54820
|
Copied
- Use in conjunction with circular grooved adaptor
- For strain relief and environmental sealing
| Brand Family | HELASHRINK |
| Color | Black (BK) |
| Description | Helashrink 150 series, VG style, features an inside lip that is used for a reinforced stress relief. Special fitting 199-4-G for audio plugs has external ribs for an improved grip. |
| Global Part Number | 154-42-B7-PO-X-BK |
| Part Number | 401-54820 |
| Product Family | Heat Shrink Molded Shapes |
| Product Subfamily | Heat Shrink Shapes - Bottle |
| Short Description | Heat Shrink Molded Shapes, 150 Series Bottle with Rib - VG, 154-42-B7, PO-X, BK, 1/bag |
| Type | 154-42-B7 |
|
|
|
| For Object Outside Diameter | 17.2-26.8 mm |
| H Recovered Dia. Max. b (imperial) | 0.55" |
| H Recovered Dia. Max. b (metric) | 14mm |
| H Supplied Dia. Min. a (imperial) | 1.17" |
| H Supplied Dia. Min. a (metric) | 30mm |
| HW ± 20 % | 1.8mm |
| HW ± 20% | .07" |
| J Recovered Dia. Max. b (imperial) | .23" |
| J Recovered Dia. Max. b (metric) | 6mm |
| J Supplied Dia. Min. a (imperial) | 1.17" |
| J Supplied Dia. Min. a (metric) | 30mm |
| JW ± 20 % | 1.0mm |
| JW ± 20% | 0.04" |
| P ± 10 % | 55mm |
| P ± 10% | 2.17" |
| S Nominal Length (imperial) | .51" |
| S Nominal Length (metric) | 13mm |
| Shrink Ratio | up to 4.5:1 |
| T ± 20% | .04" |
| Tube Shape | Bottle |
| Dielectric Strength (metric) | 14kV/mm |
| Hazardous Goods | No |
| Material | PO-X |
| Material | Polyolefin, cross-linked (PO-X) |
| Min. Shrink Temperature | +275 °F (+135 °C) |
| Nato number / cage code | 5970-01-161-0128, 5970-99-786-7821, 5970-99-717-1806 |
| Operating Temperature | -103°F to +302°F (-75°C to +150°C) |
| REACH Conformity | No |
| ROHS Compliant | Yes |
| UV Resistant | No |
