Heat Shrink Molded Shapes, 150 Series Bottle with Rib - VG, 154-41-B7, PO-X, BK, 1/bag
Art.-No. 401-54001
|
|
Copied
- Use in conjunction with circular grooved adaptor
- For strain relief and environmental sealing
| Application | Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications. |
| Color | Black (BK) |

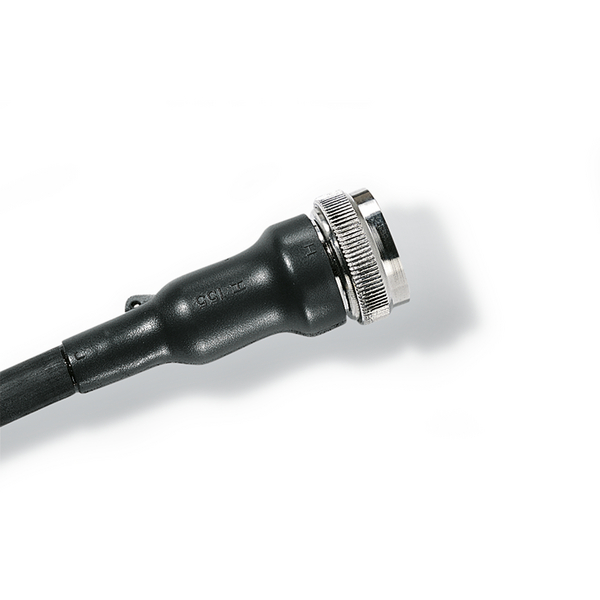

| Description | Helashrink 150 series, VG style, features an inside lip that is used for a reinforced stress relief. Special fitting 199-4-G for audio plugs has external ribs for an improved grip. |
| Global Part Number | 154-41-B7-PO-X-BK |
| Packaging Type | pcs. |
| Part No. | 401-54001 |
| Product Subfamily | Heat Shrink Shapes - Bottle |
| Product family | Heat Shrink Molded Shapes |
| Short Description | Heat Shrink Molded Shapes, 150 Series Bottle with Rib - VG, 154-41-B7, PO-X, BK, 1/bag |
| Type | 154-41-B7 |
| UV Resistant | No |
|
|
|
| For Object Outside Diameter | 17.2-26.8 mm |
| H Recovered Dia. Max. b (imperial) | 0.55" |
| H Recovered Dia. Max. b (metric) | 14mm |
| H Supplied Dia. Min. a (imperial) | 1.17" |
| H Supplied Dia. Min. a (metric) | 30mm |
| HW ± 20 % | 1.8mm |
| HW ± 20% | .07" |
| J Recovered Dia. Max. b (imperial) | .23" |
| J Recovered Dia. Max. b (metric) | 6mm |
| J Supplied Dia. Min. a (imperial) | 1.17" |
| J Supplied Dia. Min. a (metric) | 30mm |
| JW ± 20 % | 1.0mm |
| JW ± 20% | 0.04" |
| P ± 10 % | 43mm |
| P ± 10% | 1.68" |
| S Nominal Length (imperial) | .51" |
| S Nominal Length (metric) | 13mm |
| Shrink Ratio | 2:1 |
| T ± 20% | .04" |
| Tube Shape | Bottle |
