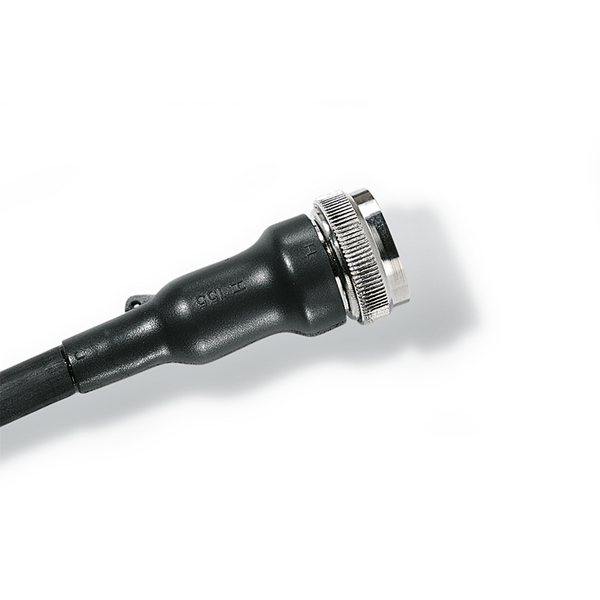

Heat Shrink Molded Shapes, 150 Series Bottle with Rib - VG, 153-42-G, PO-X, BK, 1/bag
Art.-No. 401-53028
|
|
Copied
- Straight plug-and-socket connector terminal casing
- Protects against environmental stresses for circular plug connectors
- Inside lip for reinforced stress relief
- Special 199-4-G fitting for audio plugs has external ribs for improved grip
| Application | Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications. |
| Color | Black (BK) |
| Description | Helashrink 150 series, VG style, features an inside lip that is used for a reinforced stress relief. Special fitting 199-4-G for audio plugs has external ribs for an improved grip. |
| PART DESCRIPTION | 153-42-G-PO-X-BK |
| Packaging Type | bag |
| Part No. | 401-53028 |
| Product Subfamily | Heat Shrink Shapes - Bottle |
| Product family | Heat Shrink Molded Shapes |
| Short Description | Heat Shrink Molded Shapes, 150 Series Bottle with Rib - VG, 153-42-G, PO-X, BK, 1/bag |
| Type | 153-42-G |
| UV Resistant | No |
|
|
|
| Flexibility | Semi rigid |
| For Object Outside Diameter | 16.2-22.8 mm |
| H Recovered Dia. Max. b (imperial) | 0.55" |
| H Recovered Dia. Max. b (metric) | 14mm |
| H Supplied Dia. Min. a (imperial) | 0.98" |
| H Supplied Dia. Min. a (metric) | 25mm |
| HW ± 20 % | 1.8mm |
| HW ± 20% | .07" |
| J Recovered Dia. Max. b (imperial) | .14" |
| J Recovered Dia. Max. b (metric) | 3.5mm |
| J Supplied Dia. Min. a (imperial) | .35" |
| J Supplied Dia. Min. a (metric) | 9mm |
| JW ± 20 % | 0.5mm |
| JW ± 20% | .02" |
| P ± 10 % | 55mm |
| P ± 10% | 2.17" |
| S Nominal Length (imperial) | .62" |
| S Nominal Length (metric) | 16mm |
| Shrink Ratio | 3:1 |
| T ± 20% | .04" |
| Tube Shape | Bottle |
