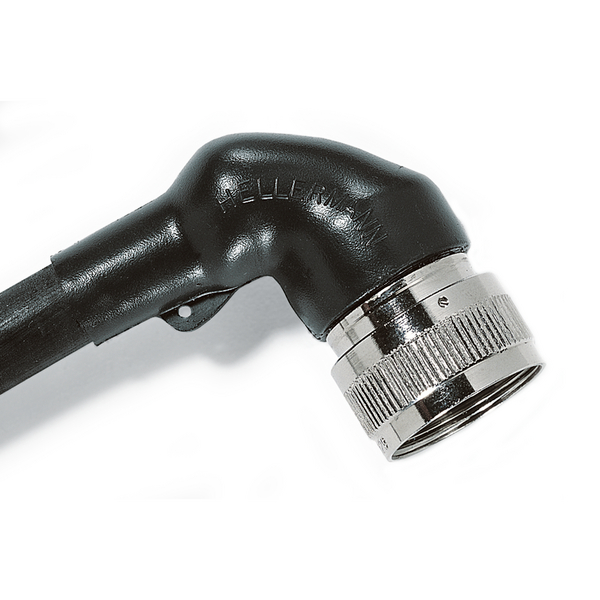

Heat Shrink Molded Shapes, 1100 Series 90-Degree with Rib - VG, 1158-4-G, PO-X, BK, 1/bag
Art.-No. 411-58014
|
|
Copied
- Used in conjunction with a circular grooved adaptor
- Provodes strain relief and an environmental seal
| Application | Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications. |
| Color | Black (BK) |
| Description | Helashrink 1100 series, with rib - VG style, provides strain relief for harness systems when used in conjunction with a circular grooved adaptor. For VG shapes according to T06 with portholes add "P" after the part number. |
| Global Part Number | 1158-4-G-PO-X-BK |
| Packaging Type | bag |
| Part No. | 411-58014 |
| Product Subfamily | Heat Shrink Shapes - Angles |
| Product family | Heat Shrink Molded Shapes |
| Short Description | Heat Shrink Molded Shapes, 1100 Series 90-Degree with Rib - VG, 1158-4-G, PO-X, BK, 1/bag |
| Type | 1158-4-G |
| UV Resistant | No |
|
|
|
| Angle | 90 |
| Flexibility | Semi rigid |
| For Object Outside Diameter | 40-55 mm |
| H Recovered Dia. Max. b (imperial) | 1.38" |
| H Recovered Dia. Max. b (metric) | 35.0mm |
| H Supplied Dia. Min. a (imperial) | 2.34" |
| H Supplied Dia. Min. a (metric) | 60mm |
| HW ± 20 % | 3.3mm |
| HW ± 20% | .13" |
| J Recovered Dia. Max. b (imperial) | .62" |
| J Recovered Dia. Max. b (metric) | 16mm |
| J Supplied Dia. Min. a (imperial) | 2.34" |
| J Supplied Dia. Min. a (metric) | 60mm |
| JW ± 20 % | 1.5mm |
| JW ± 20% | 0.06" |
| P ± 10 % | 80mm |
| P ± 10% | 3.12" |
| S Nominal Length (imperial) | 1.17" |
| S Nominal Length (metric) | 30mm |
| Shrink Ratio | up to 3:1 |
| T ± 20% | .07" |
| Tensile Strength | 15MPa |
| Tube Shape | Angle |
