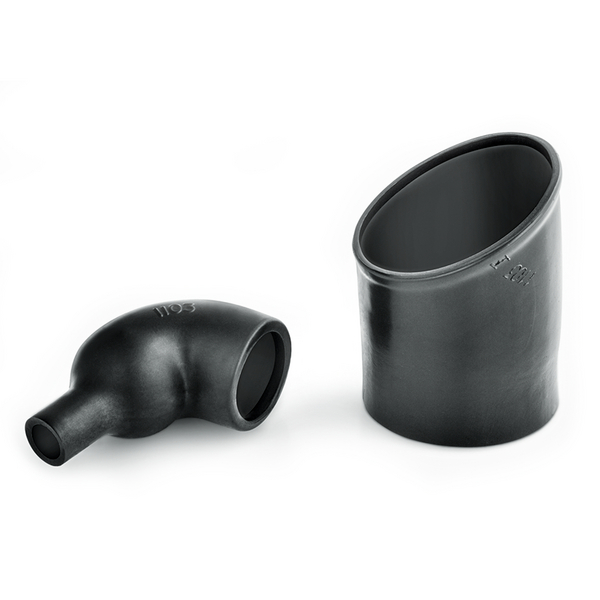

Heat Shrink Molded Shapes, 1100 Series 90-Degree with Rib - MIL, 1101-4-G, PO-X, BK, 1/bag
Art.-No. 411-01020
|
|
Copied
- Used in conjunction with a circular grooved adaptor for strain relief
| Application | Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications. |
| Color | Black (BK) |
| Description | Helashrink 1100 series, with rib - MIL style, provides strain relief for harness systems when used in conjunction with a circular grooved adaptor. |
| PART DESCRIPTION | 1101-4-G-PO-X-BK |
| Packaging Type | bag |
| Part No. | 411-01020 |
| Product Subfamily | Heat Shrink Shapes - Angles |
| Product family | Heat Shrink Molded Shapes |
| Short Description | Heat Shrink Molded Shapes, 1100 Series 90-Degree with Rib - MIL, 1101-4-G, PO-X, BK, 1/bag |
| Type | 1101-4-G |
| UV Resistant | No |
|
|
|
| Angle | 90 |
| Flexibility | Semi rigid |
| For Object Outside Diameter | 30.84-39.66 mm |
| H Recovered Dia. Max. b (imperial) | 1.10" |
| H Recovered Dia. Max. b (metric) | 27.9mm |
| H Supplied Dia. Min. a (imperial) | 1.66" |
| H Supplied Dia. Min. a (metric) | 42.6mm |
| HW ± 20 % | 2mm |
| HW ± 20% | .08" |
| J Recovered Dia. Max. b (imperial) | .38" |
| J Recovered Dia. Max. b (metric) | 9.7mm |
| J Supplied Dia. Min. a (imperial) | 1.66" |
| J Supplied Dia. Min. a (metric) | 42.6mm |
| P ± 10 % | 53.3mm |
| P ± 10% | 2.08" |
| S Nominal Length (imperial) | .61" |
| S Nominal Length (metric) | 15.7mm |
| T ± 20% | .07" |
| Tensile Strength | 15MPa |
| Tube Shape | Angle |
