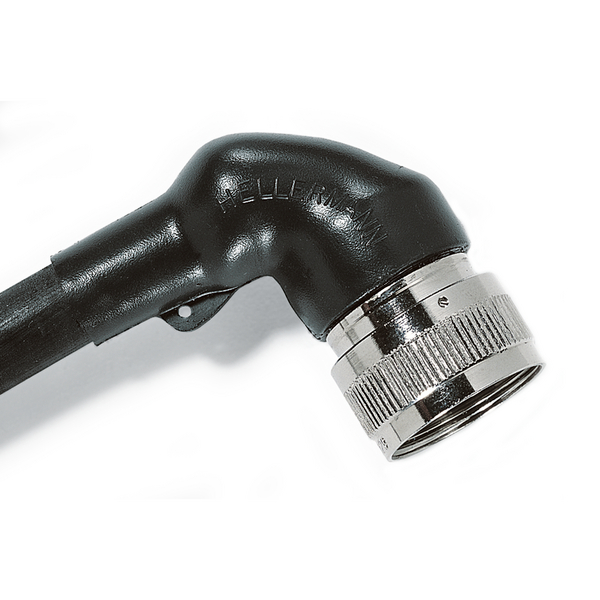

Heat Shrink Molded Shapes, 1100 Series 90-Degree with Rib - VG, 1157-4-B7, PO-X, BK, 1/bag
Part No. 411-57001
|
Copied
- Used in conjunction with a circular grooved adaptor
- Provodes strain relief and an environmental seal
| Brand Family | HELASHRINK |
| Color | Black (BK) |
| Description | Helashrink 1100 series, with rib - VG style, provides strain relief for harness systems when used in conjunction with a circular grooved adaptor. For VG shapes according to T06 with portholes add "P" after the part number. |
| Global Part Number | 1157-4-B7-PO-X-BK |
| Part Number | 411-57001 |
| Product Family | Heat Shrink Molded Shapes |
| Product Subfamily | Heat Shrink Shapes - Angles |
| Short Description | Heat Shrink Molded Shapes, 1100 Series 90-Degree with Rib - VG, 1157-4-B7, PO-X, BK, 1/bag |
| Type | 1157-4-B7 |
|
|
|
| Angle | 90 |
| Flexibility | Semi rigid |
| For Object Outside Diameter | 31.4-40.1 mm |
| H Recovered Dia. Max. b (imperial) | 1.12" |
| H Recovered Dia. Max. b (metric) | 28.5mm |
| H Supplied Dia. Min. a (imperial) | 1.68" |
| H Supplied Dia. Min. a (metric) | 43mm |
| HW ± 20 % | 2mm |
| HW ± 20% | .08" |
| J Recovered Dia. Max. b (imperial) | .39" |
| J Recovered Dia. Max. b (metric) | 10mm |
| J Supplied Dia. Min. a (imperial) | 1.68" |
| J Supplied Dia. Min. a (metric) | 43mm |
| S Nominal Length (imperial) | .62" |
| S Nominal Length (metric) | 16mm |
| T ± 20% | .07" |
| Tensile Strength | 13MPa |
| Tube Shape | Angle |
| Dielectric Strength (metric) | 14kV/mm |
| Dielectric Strength test method | ASTM D2671 |
| Flammability | ASTM D635 |
| Hazardous Goods | No |
| Material | PO-X |
| Material | Polyolefin, cross-linked (PO-X) |
| Min. Shrink Temperature | +275 °F (+135 °C) |
| Nato number / cage code | 5970-99-751-8779, 5970-01-032-3551, 5970-99-646-3345 |
| Operating Temperature | -67°F to +275°F (-55°C to +135°C) |
| REACH Conformity | No |
| ROHS Compliant | Yes |
| UV Resistant | No |
