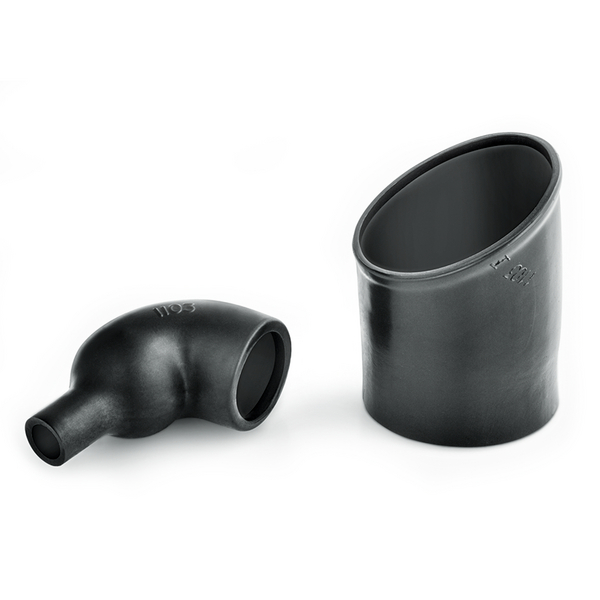

Heat Shrink Molded Shapes, 1100 Series 90-Degree with Rib - MIL, 1108-4-G, PO-X, BK, 1/bag
Art.-No. 411-08480
|
|
Copied
- Used in conjunction with a circular grooved adaptor for strain relief
| Application | Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications. |
| Color | Black (BK) |
| Description | Helashrink 1100 series, with rib - MIL style, provides strain relief for harness systems when used in conjunction with a circular grooved adaptor. |
| Global Part Number | 1108-4-G-PO-X-BK |
| Packaging Type | pcs. |
| Part No. | 411-08480 |
| Product Subfamily | Heat Shrink Shapes - Angles |
| Product family | Heat Shrink Molded Shapes |
| Short Description | Heat Shrink Molded Shapes, 1100 Series 90-Degree with Rib - MIL, 1108-4-G, PO-X, BK, 1/bag |
| Type | 1108-4-G |
| UV Resistant | No |
|
|
|
| Angle | 90 |
| Flexibility | Semi rigid |
| For Object Outside Diameter | 9.62-14.78 mm |
| H Recovered Dia. Max. b (imperial) | 0.31" |
| H Recovered Dia. Max. b (metric) | 7.9mm |
| H Supplied Dia. Min. a (imperial) | 0.64" |
| H Supplied Dia. Min. a (metric) | 16.5mm |
| HW ± 20 % | 1.0mm |
| HW ± 20% | .04" |
| J Recovered Dia. Max. b (imperial) | .15" |
| J Recovered Dia. Max. b (metric) | 3.8mm |
| J Supplied Dia. Min. a (imperial) | .64" |
| J Supplied Dia. Min. a (metric) | 16.5mm |
| JW ± 20 % | 1.0mm |
| JW ± 20% | 0.04" |
| P ± 10 % | 17.3mm |
| P ± 10% | .67" |
| S Nominal Length (imperial) | .2" |
| S Nominal Length (metric) | 5.1mm |
| T ± 20% | .04" |
| Tensile Strength | 15MPa |
| Tube Shape | Angle |
