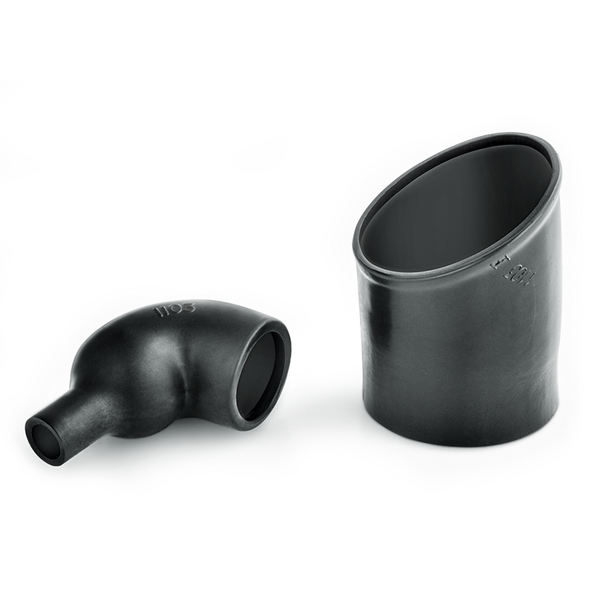

Heat Shrink Molded Shapes, 1100 Series 90-Degree with Rib - MIL, 1106-4-G, PO-X, BK, 1/bag
Part No. 411-06019
|
Copied
- Used in conjunction with a circular grooved adaptor for strain relief
| Brand Family | HELASHRINK |
| Color | Black (BK) |
| Description | Helashrink 1100 series, with rib - MIL style, provides strain relief for harness systems when used in conjunction with a circular grooved adaptor. |
| Global Part Number | 1106-4-G-PO-X-BK |
| Part Number | 411-06019 |
| Product Family | Heat Shrink Molded Shapes |
| Product Subfamily | Heat Shrink Shapes - Angles |
| Short Description | Heat Shrink Molded Shapes, 1100 Series 90-Degree with Rib - MIL, 1106-4-G, PO-X, BK, 1/bag |
| Type | 1106-4-G |
|
|
|
| Angle | 90 |
| Flexibility | Semi rigid |
| For Object Outside Diameter | 12.98-20.72 mm |
| H Recovered Dia. Max. b (imperial) | 0.41" |
| H Recovered Dia. Max. b (metric) | 10.4mm |
| H Supplied Dia. Min. a (imperial) | 0.91" |
| H Supplied Dia. Min. a (metric) | 23.3mm |
| HW ± 20 % | 1.3mm |
| HW ± 20% | .05" |
| J Recovered Dia. Max. b (imperial) | .22" |
| J Recovered Dia. Max. b (metric) | 5.6mm |
| J Supplied Dia. Min. a (imperial) | .91" |
| J Supplied Dia. Min. a (metric) | 23.3mm |
| P ± 10 % | 20.3mm |
| P ± 10% | .79" |
| S Nominal Length (imperial) | .23" |
| S Nominal Length (metric) | 5.8mm |
| T ± 20% | .04" |
| Tensile Strength | 15MPa |
| Tube Shape | Angle |
| Dielectric Strength (metric) | 14kV/mm |
| Dielectric Strength test method | ASTM D2671 |
| Flammability | ASTM D635 |
| Material | PO-X |
| Material | Polyolefin, cross-linked (PO-X) |
| Min. Shrink Temperature | +275 °F (+135 °C) |
| Nato number / cage code | 5970-01-413-8370 |
| Operating Temperature | -103°F to +302°F (-75°C to +150°C) |
| ROHS Compliant | Yes |
| UV Resistant | No |
