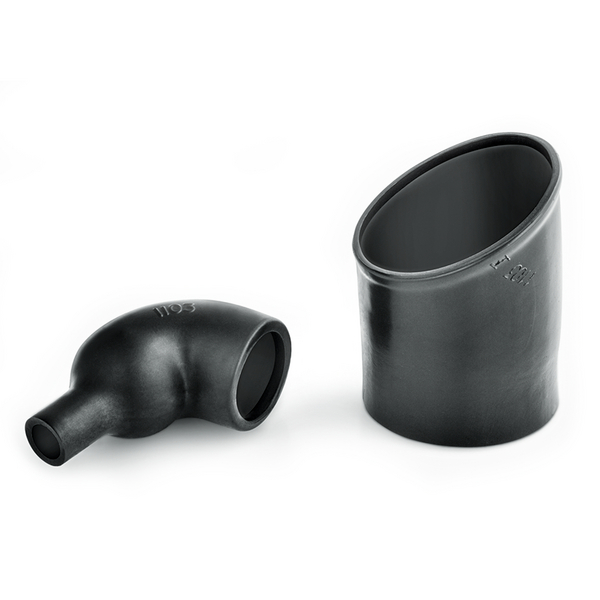

Heat Shrink Molded Shapes, 1100 Series 90-Degree with Rib - MIL, 1105-4-J, PO-X, BK, 1/bag
Part No. 411-05019
|
Copied
- Used in conjunction with a circular grooved adaptor for strain relief
| Brand Family | HELASHRINK |
| Color | Black (BK) |
| Description | Helashrink 1100 series, with rib - MIL style, provides strain relief for harness systems when used in conjunction with a circular grooved adaptor. |
| Global Part Number | 1105-4-J-PO-X-BK |
| Part Number | 411-05019 |
| Product Family | Heat Shrink Molded Shapes |
| Product Subfamily | Heat Shrink Shapes - Angles |
| Short Description | Heat Shrink Molded Shapes, 1100 Series 90-Degree with Rib - MIL, 1105-4-J, PO-X, BK, 1/bag |
| Type | 1105-4-J |
|
|
|
| Angle | 90 |
| Flexibility | Flexible |
| For Object Outside Diameter | 38.44-48.46 mm |
| H Recovered Dia. Max. b (imperial) | 1.37" |
| H Recovered Dia. Max. b (metric) | 35.1mm |
| H Supplied Dia. Min. a (imperial) | 2.02" |
| H Supplied Dia. Min. a (metric) | 51.8mm |
| HW ± 20 % | 3.3mm |
| HW ± 20% | .13" |
| J Recovered Dia. Max. b (imperial) | .61" |
| J Recovered Dia. Max. b (metric) | 15.7mm |
| J Supplied Dia. Min. a (imperial) | 2.02" |
| J Supplied Dia. Min. a (metric) | 51.8mm |
| P ± 10 % | 78.7mm |
| P ± 10% | 3.07" |
| S Nominal Length (imperial) | 1.19" |
| S Nominal Length (metric) | 30.5mm |
| T ± 20% | .07" |
| Tensile Strength | 19MPa |
| Tube Shape | Angle |
| Dielectric Strength (metric) | 18kV/mm |
| Dielectric Strength test method | ASTM D2671 |
| Flammability | ASTM D635 |
| Hazardous Goods | No |
| Material | PO-X |
| Material | Polyolefin, cross-linked (PO-X) |
| Min. Shrink Temperature | +275 °F (+135 °C) |
| Nato number / cage code | 5970-01-107-9888 |
| Operating Temperature | -67°F to +275°F (-55°C to +135°C) |
| REACH Conformity | No |
| ROHS Compliant | Yes |
| UV Resistant | No |
