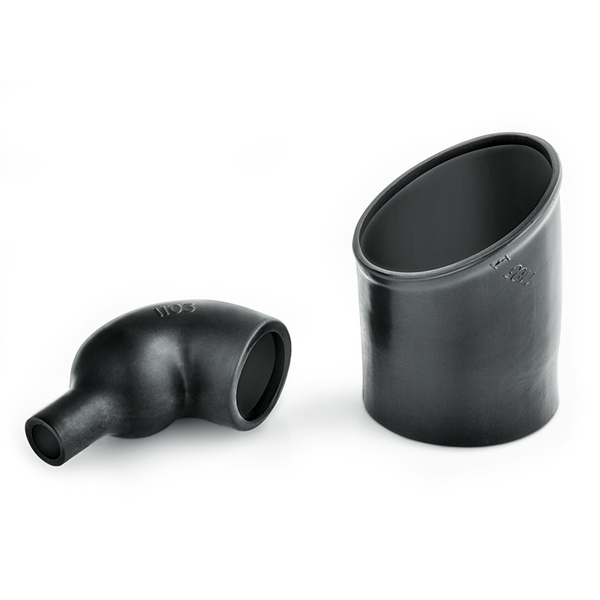

Heat Shrink Molded Shapes, 1100 Series 90-Degree with Rib - MIL, 1104-4-G, PO-X, BK, 1/bag
Part No. 411-04032
|
Copied
- Used in conjunction with a circular grooved adaptor for strain relief
| Brand Family | HELASHRINK |
| Color | Black (BK) |
| Description | Helashrink 1100 series, with rib - MIL style, provides strain relief for harness systems when used in conjunction with a circular grooved adaptor. |
| Global Part Number | 1104-4-G-PO-X-BK |
| Part Number | 411-04032 |
| Product Family | Heat Shrink Molded Shapes |
| Product Subfamily | Heat Shrink Shapes - Angles |
| Short Description | Heat Shrink Molded Shapes, 1100 Series 90-Degree with Rib - MIL, 1104-4-G, PO-X, BK, 1/bag |
| Type | 1104-4-G |
|
|
|
| Angle | 90 |
| Flexibility | Semi rigid |
| For Object Outside Diameter | 20.42-28.28 mm |
| H Recovered Dia. Max. b (imperial) | 0.69" |
| H Recovered Dia. Max. b (metric) | 17.8mm |
| H Supplied Dia. Min. a (imperial) | 1.21" |
| H Supplied Dia. Min. a (metric) | 30.9mm |
| HW ± 20 % | 1.8mm |
| HW ± 20% | .07" |
| J Recovered Dia. Max. b (imperial) | .28" |
| J Recovered Dia. Max. b (metric) | 7.1mm |
| J Supplied Dia. Min. a (imperial) | 1.21" |
| J Supplied Dia. Min. a (metric) | 30.9mm |
| P ± 10 % | 35.6mm |
| P ± 10% | 1.39" |
| S Nominal Length (imperial) | .34" |
| S Nominal Length (metric) | 8.6mm |
| T ± 20% | .04" |
| Tensile Strength | 15MPa |
| Tube Shape | Angle |
| Dielectric Strength (metric) | 14kV/mm |
| Dielectric Strength test method | ASTM D2671 |
| Flammability | ASTM D635 |
| Hazardous Goods | No |
| Material | PO-X |
| Material | Polyolefin, cross-linked (PO-X) |
| Min. Shrink Temperature | +275 °F (+135 °C) |
| Nato number / cage code | 5970-99-793-9308 |
| Operating Temperature | -103°F to +302°F (-75°C to +150°C) |
| REACH Conformity | No |
| ROHS Compliant | Yes |
| UV Resistant | No |
