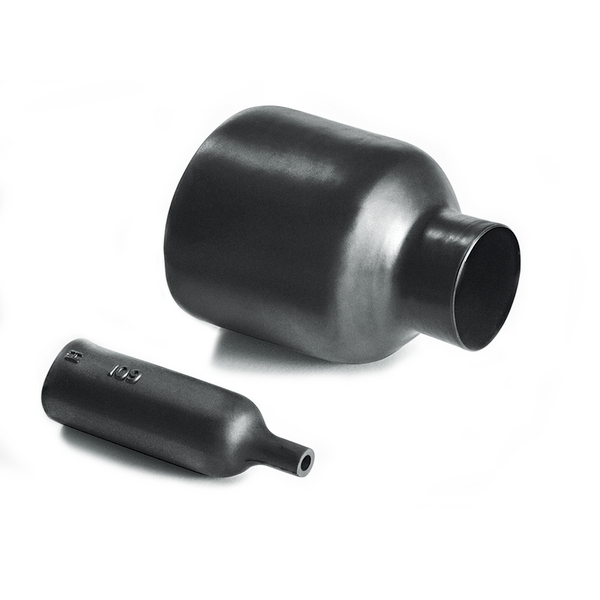

Heat Shrink Molded Shapes, 100 Series Bottle, 108-1-B7, PO-X, BK, 1/bag
Part No. 401-08001
|
Copied
- Strain relief for connector cable
- Easy re-entry for repair when combined with hot melt adhesive
| Brand Family | HELASHRINK |
| Color | Black (BK) |
| Description | Helashrink 100 series, without rib, provides connector cable strain relief. Can be installed on the connector rear thread or plain shaft and allows easy re-entry for repair when combined with a hot melt adhesive. |
| Global Part Number | 108-1-B7-PO-X-BK |
| Part Number | 401-08001 |
| Product Family | Heat Shrink Molded Shapes |
| Product Subfamily | Heat Shrink Shapes - Bottle |
| Short Description | Heat Shrink Molded Shapes, 100 Series Bottle, 108-1-B7, PO-X, BK, 1/bag |
| Type | 108-1-B7 |
|
|
|
| Flexibility | Semi rigid |
| For Object Outside Diameter | 11.06-13.04 mm |
| H Recovered Dia. Max. b (imperial) | 0.41" |
| H Recovered Dia. Max. b (metric) | 10.4mm |
| H Supplied Dia. Min. a (imperial) | 0.53" |
| H Supplied Dia. Min. a (metric) | 13.7mm |
| HW ± 20 % | 1.5mm |
| HW ± 20% | .06" |
| J Recovered Dia. Max. b (imperial) | .12" |
| J Recovered Dia. Max. b (metric) | 3.1mm |
| J Supplied Dia. Min. a (imperial) | .26" |
| J Supplied Dia. Min. a (metric) | 6.6mm |
| Max. R | .89" |
| P ± 10 % | 38.1mm |
| P ± 10% | 1.49" |
| R max. | 22.9mm |
| S Nominal Length (imperial) | .3" |
| S Nominal Length (metric) | 7.6mm |
| Tensile Strength | 13MPa |
| Tube Shape | Bottle |
| Dielectric Strength (metric) | 14kV/mm |
| Dielectric Strength test method | ASTM D2671 |
| Flammability | ASTM D635 |
| Material | PO-X |
| Material | Polyolefin, cross-linked (PO-X) |
| Min. Shrink Temperature | +275 °F (+135 °C) |
| Nato number / cage code | 5970-99-194-9961 |
| Operating Temperature | -67°F to +275°F (-55°C to +135°C) |
| REACH Conformity | No |
| ROHS Compliant | Yes |
| UV Resistant | No |
